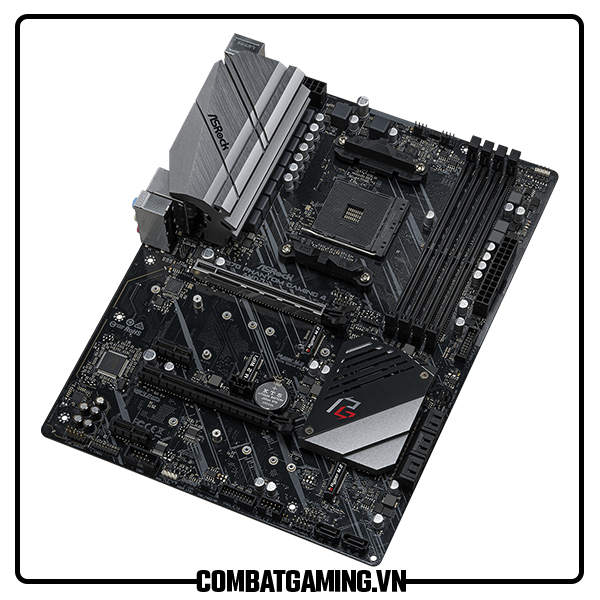

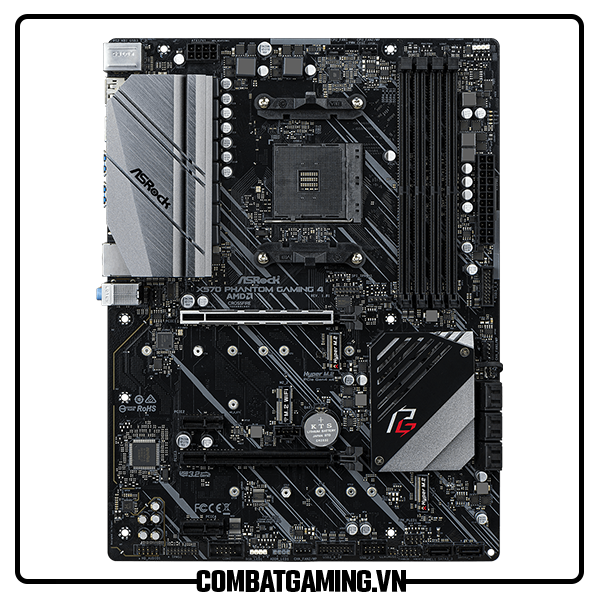

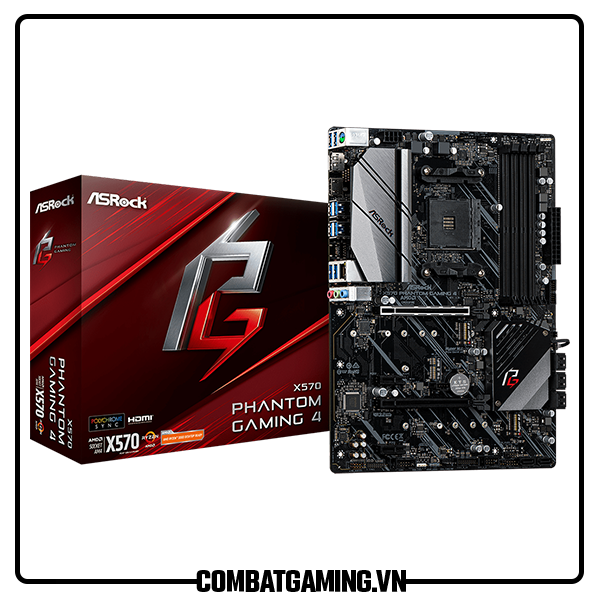

Mainboard Asrock X570 Phantom Gaming 4

3,990,000₫3,990,000₫

Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
10 Power Phase Design
Supports DDR4 4066+ (OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 (Key E) For WiFi
AMD Quad CrossFireX™ and CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel® Gigabit LAN
ASRock Polychrome SYNC

Unique Feature	ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB Audio LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 Socket Ryzen™ 2000 2000 G-Series 3000 3000 G-Series 4000 G-Series 5000 and 5000 G-Series Desktop Processors* - Digi Power design - 10 Power Phase design
Chipset	AMD X570
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules
BIOS	256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU CPU VDDCR_SOC DRAM VPPM PREM VDD_CLDO PERM VDDCR_SOC +1.8V VDDP VDDG CPU Load-Line Calibration CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12 Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.0 - Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports - Supports Microsoft® PlayReady
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots	AMD Ryzen series CPUs (Vermeer Matisse) - 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))* AMD Ryzen series CPUs (Cezanne Renoir Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1))* AMD Ryzen series CPUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))* AMD X570 Chipset - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3))* - 2 x PCI Express 4.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
Storage	- 8 x SATA3 6.0 Gb/s Connectors support RAID (RAID 0 RAID 1 and RAID 10) NCQ AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1) supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer Matisse) or Gen3x4 (32 Gb/s) (with Cezanne Renoir Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_3) supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer Matisse) or Gen3x4 (32 Gb/s) (with Cezanne Renoir Pinnacle Ridge and Picasso)*
Connector	1 x COM Port Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers (Support in total up to 12V/3A 36W LED Strip) - 1 x Addressable LED Header (Supports in total up to 5V/3A 15W LED Strip) - 1 x CPU Fan Connector 4-pin (The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power) - 1 x CPU/Water Pump Fan Connector 4-pin Smart Fan Speed Control (The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.) - 3 x Chassis/Water Pump Fan Connectors 4-pin Smart Fan Speed Control (The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x SPI TPM Header

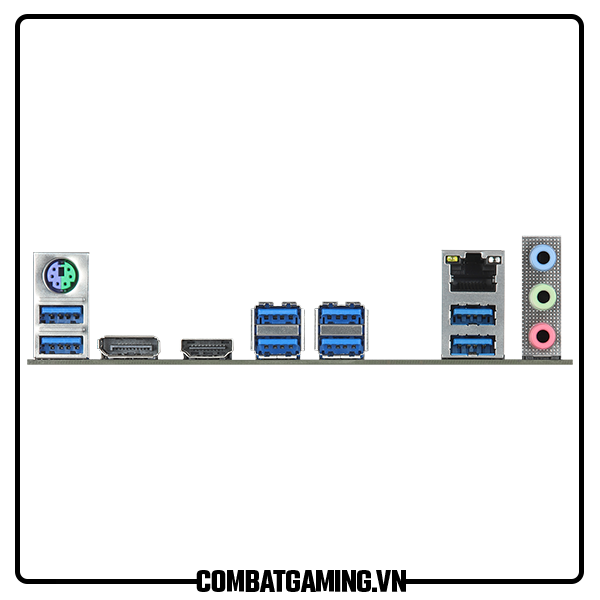

Rear Panel I/O	- 3 x Antenna Ports (on I/O Panel Shield) - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Phantom Gaming Tuning - ASRock Polychrome SYNC - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash
Form Factor	- ATX Form Factor: 12.0-in x 9.0-in 30.5 cm x 22.9 cm - Solid Capacitor design - 2oz Copper PCB
Bảo hành	36 tháng
