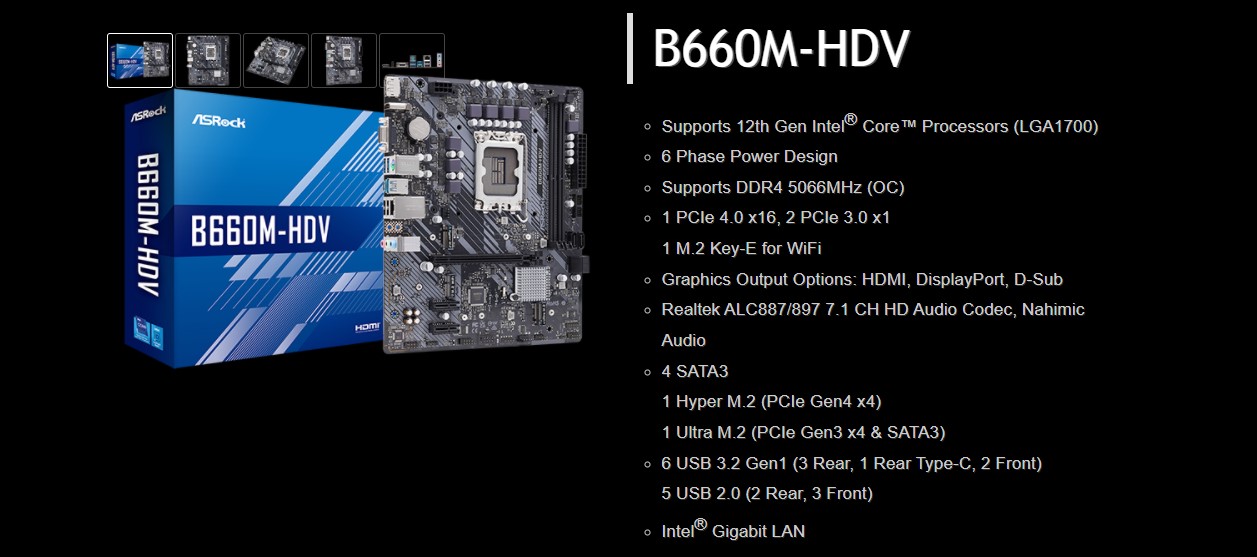

Mainboard ASRock B660M HDV DDR4

2,290,000₫2,490,000₫

- Chipset: Intel B660

- Socket: Intel LGA 1700

- Kích thước: M-ATX

- Số khe RAM: 2

- Bảo hành chính hãng: 36 tháng

Đánh giá Mainboard ASRock B660M HDV DDR4



ASROCK B660M-HDV là dòng bo mạch chủ chipset B660 tầm trung, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 non K thế hệ Alder Lake.

Mainboard ASROCK B660M-HDV



Tính năng nổi bật

6 phase nguồn

Khe M.2 PCI-e Gen 4 cho SSD M.2 tốc độ cao

Khe M.2 Key E để nâng cấp cho các card Wifi

Mainboard ASROCK B660M-HDV



Bo mạch chủ này dành cho ai?

 ASROCK B660M-HDV phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.

Mainboard ASROCK B660M-HDV

Model B660M-HDV DDR4
CPU hỗ trợSupports 12th Gen Intel® Core™ Processors (LGA1700)
Chipset B660
RAM hỗ trợ - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
Khe cắm mở rộng - 1 x PCIe Gen4x16 Slot*
- 2 x PCIe Gen3x1 Slots
- 1 x M.2 Socket (Key E)
supports type 2230 WiFi/BT PCIe WiFi module
Ổ cứng hỗ trợ - 4 x SATA3 6.0 Gb/s Connectors*
- 1 x Hyper M.2 Socket (M2_1
Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
- 1 x Ultra M.2 Socket (M2_2
Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
Cổng kết nối (Internal)- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel) - 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
LAN / Wireless - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Kích cỡ - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design
Bảo hành36 tháng
