Nguồn Corsair SF1000 1000W | 80 Plus Platinum | ATX 3.1 | PCIe 5.1 | CP-9020257-NA
5.490.000 ₫
- Dòng sản phẩm: SF series
- Công suất: 1000W
- Chuẩn nguồn: 80 Plus Platinum
- Hiệu suất: 89%
- Số rail: +12V1, +12V2, +3.3V, +5V, -12V
- Cổng kết nối:
- 1x 24-pin ATX
- 2x (4+4)pin CPU
- 4x (6+2)pin PCIe
- 1x (12+4) PCIe 5.1
- 2x 4*SATA
- 1x 3*Molex 4-pin
- 0x Floppy 4-pin
- Quạt: 1 x 92mm
- Kích thước: 100*125*63.5 mm
- Trọng lượng: 3.8kg
Bảo hành 84 tháng
Trả giá

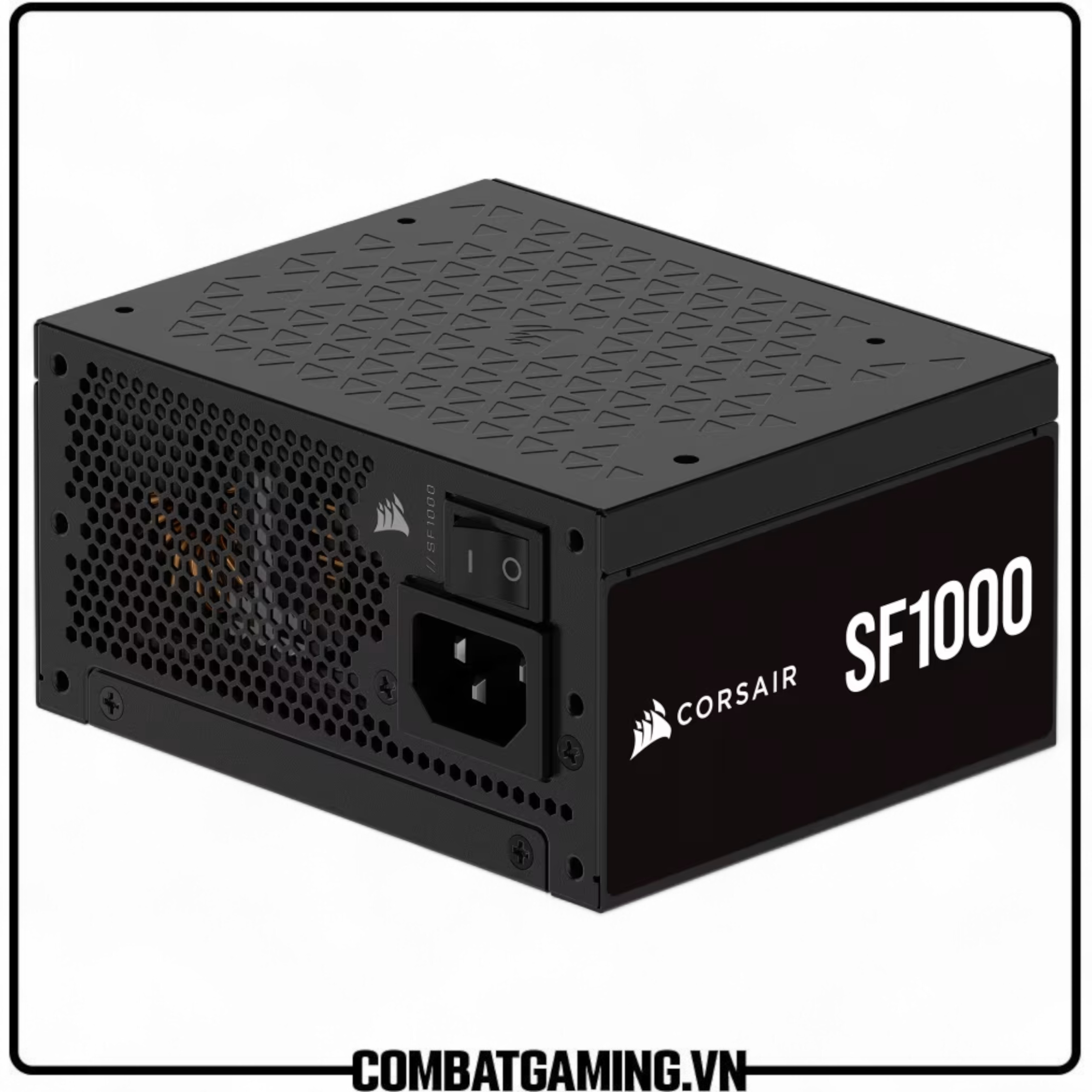

SF PLATINUM SERIES
PLATINUM POWER FOR SFF BUILDS
SMALL AND MIGHTY
Don't let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.

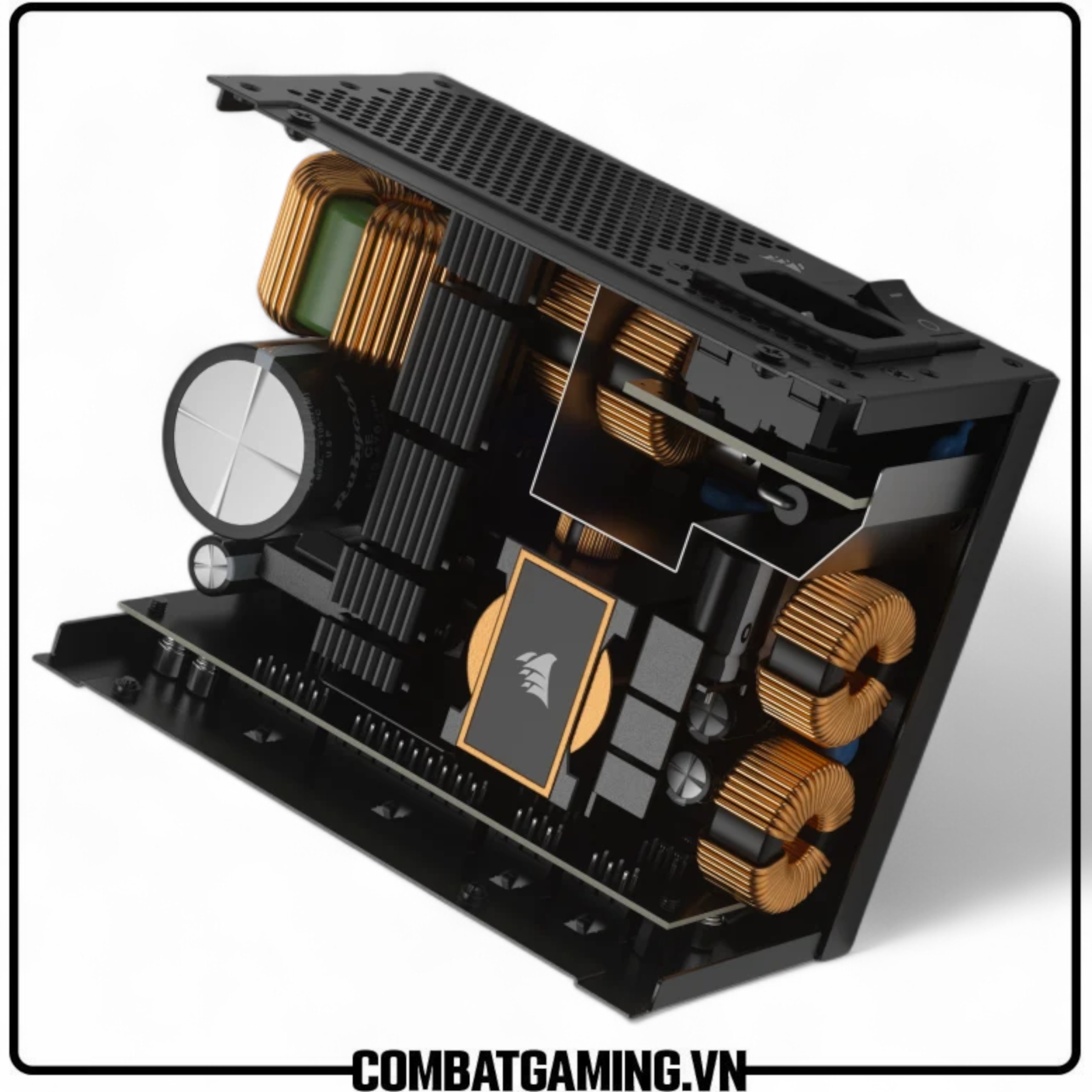

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

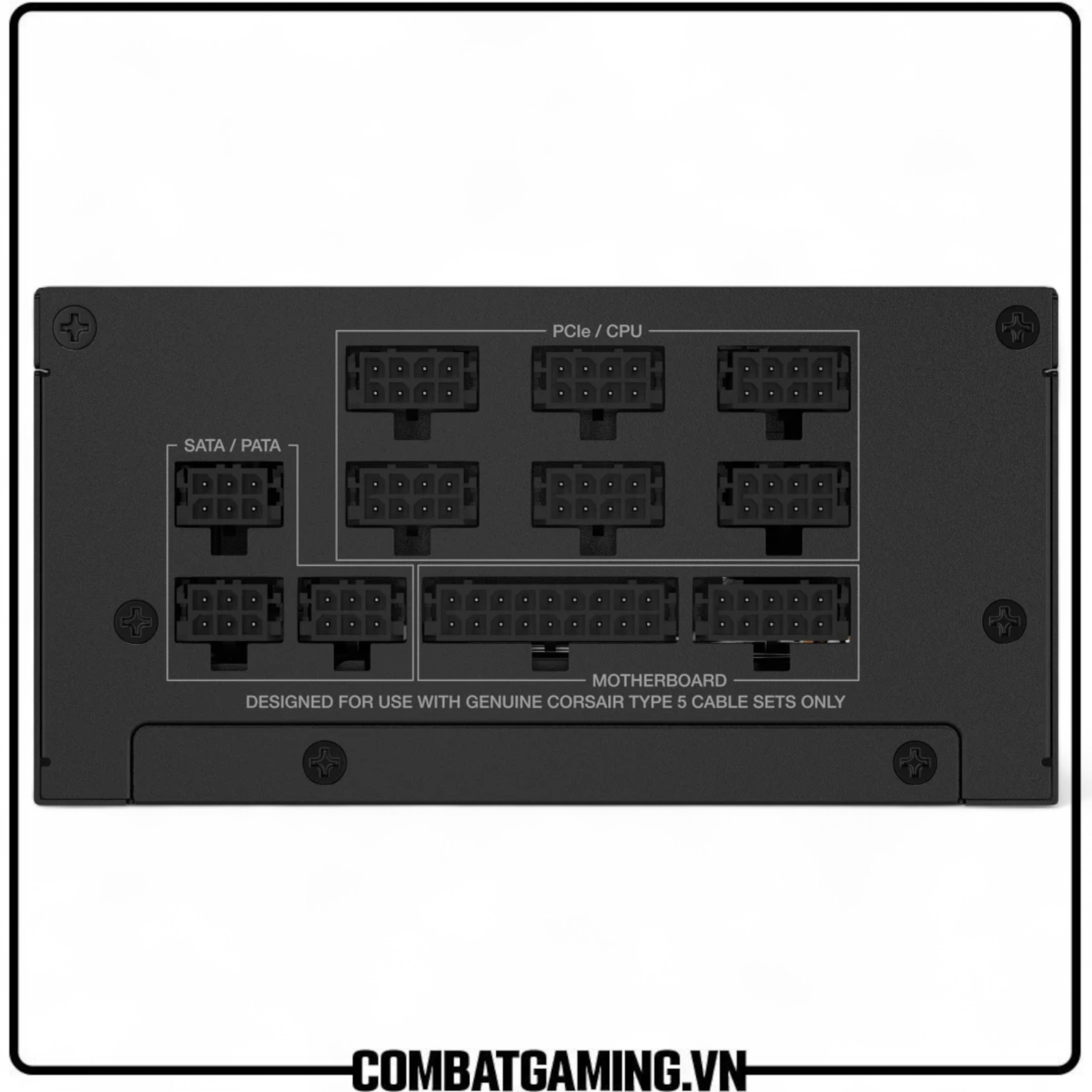

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
SF1000 POWER TABLE
| MODEL | RPS0176 | |
|---|---|---|
| Part No. | 75-005386 | |
| AC Input Rating | ||
| AC Input | 100–240V | |
| Input Current | 12A-6A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 130W |
| +5V | 20A | |
| +12V | 83.3A | 1000W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 1000W | |
SF1000 CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector spacing |
Total length |
Cable Type |
|---|---|---|---|---|---|---|
| 1 | Modular ATX Cable (24-pin)  |
1 | 1 | - | 300mm (± 10mm) |
Individually Sleeved |
| 2 | EPS / ATX 12V 8-pin (4+4)  |
1 | 2 | - | 400mm (± 10mm) |
Individually Sleeved |
| 4 | PCIe 8-pin (6+2)  |
1 | 4 | - | 400mm (± 10mm) |
Individually Sleeved |
| 1 | 12VHPWR (12+4) pin  |
1 | 1 | - | 400mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Straight SATA)  |
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | SATA (4 Right SATA) |
4 | 4 | 100mm, 115mm, 115mm, 115mm |
445mm (± 10mm) |
Individually Sleeved |
| 1 | PATA (3 PATA)  |
3 | 3 | 100mm, 115mm, 115mm |
330mm (± 10mm) |
Individually Sleeved |
Tech Specs
| Cybenetics Efficiency | Platinum |
|---|---|
| Cybenetics Noise | Standard++ |
| PATA Connector | 3 |
| EPS Connector | 2 |
| SATA Connector | 8 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Modular | Fully |
| Cable Type | Type 5 |
| PCIe Connector | 4 |
| Zero RPM Mode | Yes |
| PSU Form Factor | SFX |
|---|---|
| Multi GPU Ready | Yes |
| Fan Size MM | 92mm |
| Continuous Power W | 1000 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Platinum |
| Warranty | 7 Year |
| Weight | 2.30 |
