TUF GAMING
B760M-PLUS II

TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

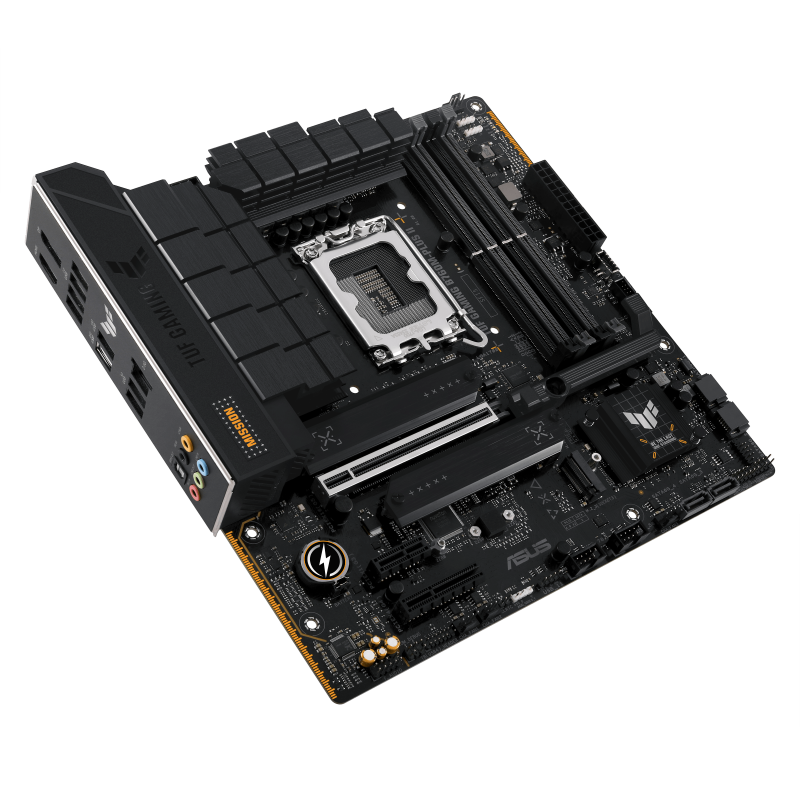

TUF Gaming motherboard front view, 60 degrees, with Aura lighting

SPEC OVERVIEW

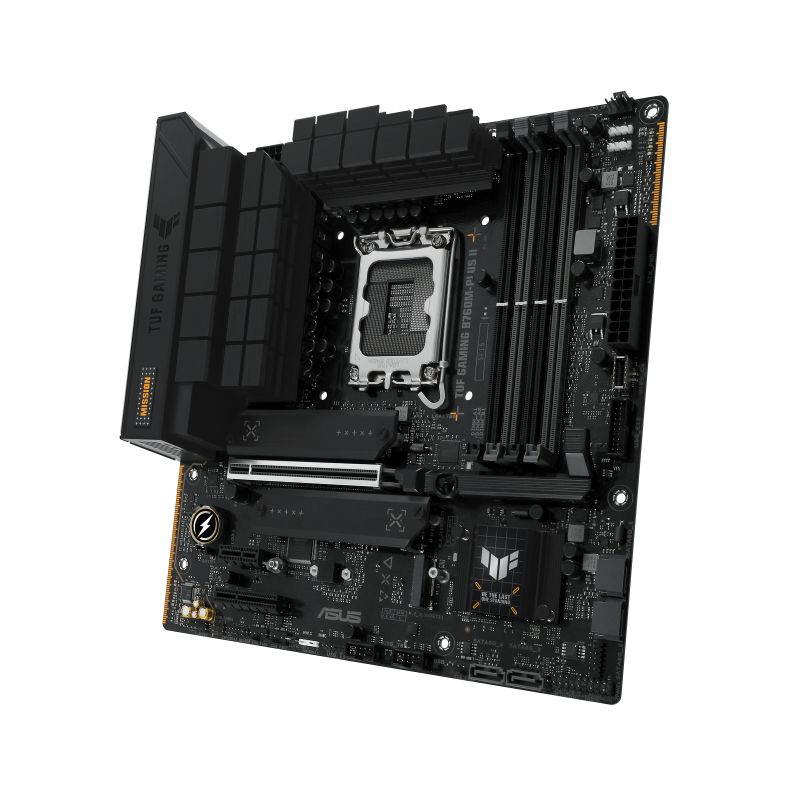

TUF Gaming motherboard front view, with Aura lighting

1

HDMI™ port

2

DisplayPort

3

4 x USB 2.0 ports

4

1 x USB 20Gbps port Type-C®

5

1 x USB 10Gbps port

6

2 x USB 5Gbps ports

7

Realtek 2.5Gb Ethernet

8

Optical S/PDIF OUT port

9

5 x Audio Jacks

10

1 x PCIe 5.0 x16 @CPU
- ASUS SafeSlot Core+
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1

11

Realtek® 7.1-chAudio CODEC
» Exclusive DTS Audio Processing
» Audio Shielding
» Premium audio capacitors
» Dedicated audio PCB layers

12

ProCool Connectors

13

3 x Addressable Gen 2 RGB headers

14

12(50A)+1(60A)+1 Power Stages

15

DDR5 ASUS Optimen II

16

Intel® Socket LGA1700 for
Intel® Core™ 14th & 13th Gen Processors

17

1 x USB 10Gbps Type-C® port

18

1 x USB 5Gbps header

19

2 x M.2 2280 PCIe 4.0 x 4
1 x M.2 2280 PCIe 4.0 x 2

20

4 x SATA 6Gb/s ports

21

B760 chipset

22

3 x Front USB 2.0 Headers

23

1 x Thunderbolt™ (USB4®) header

INTELLIGENT CONTROL

The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

An Armoury Crate‘s UI to show energy efficient can be setup by Power Saving Settings
01.
TUF GAMING

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS II is the perfect foundation for your next Intel battle rig.

Premium Power Delivery

12+1+1 power stages are each rated to handle up to 50 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

12
Core Power
(50A, DrMOS)
1
GT Power
(60A, DrMOS)
1
AUX Power
A zoom in photo to show power stages
02.
TUF GAMING

Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Learn more about TUF Gaming ecosystem
TUF GAMING Alliance
03.
TUF GAMING

Immersive Gaming

TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

2.5 Gb Ethernet

2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

2.5 Gb Ethernet
04.
TUF GAMING
AMD Precision Boost Overdrive
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
AI Overclocking
What’s New about AI Overclocking?
As the first foray of AI Overclocking on an AMD architecture, the set of parameters has changed substantially, but voltage and clock speeds are still the primary targets for adjustment.
Predictive settings in the utility are designed to work in tandem with Precision Boost Overdrive (PBO), but they go one step further by enhancing the values for EDC, TDC, and PPT, as well as tuning the curve optimizer.
Finally, by enabling the Dynamic OC Switcher, AI Overclocking ensures that the CPU is using ideal settings whether in single- or multi-threaded workloads.

USB 20Gbps (Type-C®)

Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.

PCIe 5.0

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of the PCIe bus.

Aggregate Bandwidth (Gbps)
PCIe 3.0 x 16
128
PCIe 4.0 x 16
256
PCIe 5.0 x 16
512

Front USB 10Gbps (Type-C®)

A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 10Gbps Type-C® connector that provides data transfer speeds of up to 10 Gbps.

Thunderbolt™(USB4®) Support

The TUF GAMING B760M series features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this motherboard can also enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connection and supports up to an 8K-resolution display. It can also provide up to 100 watts of power to fast-charge devices.

* ASUS ThunderboltEX 4 add-on card is sold separately.

20 Gbps
Gen 2x2
40
Gbps
Thunderbolt™ (USB4®)
