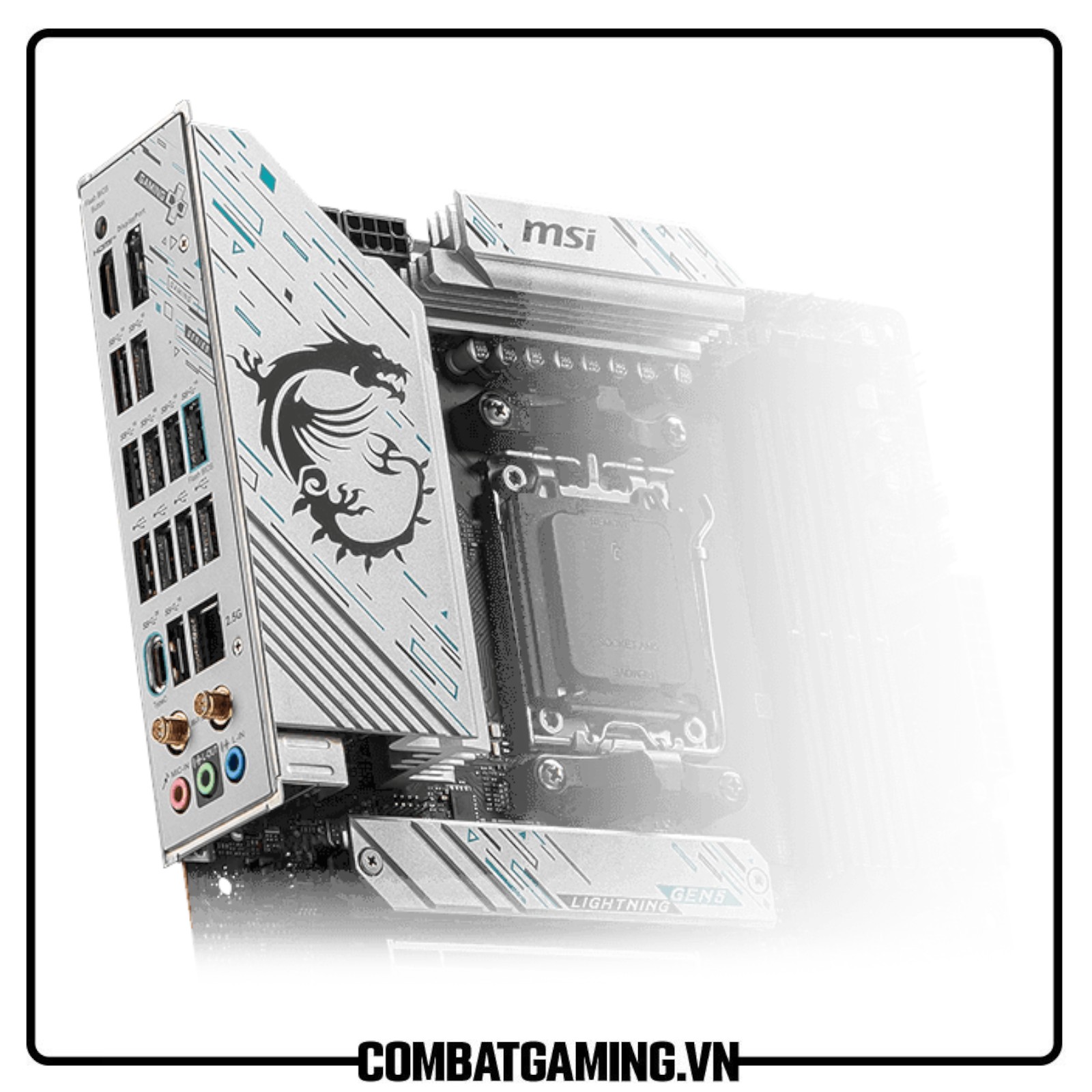

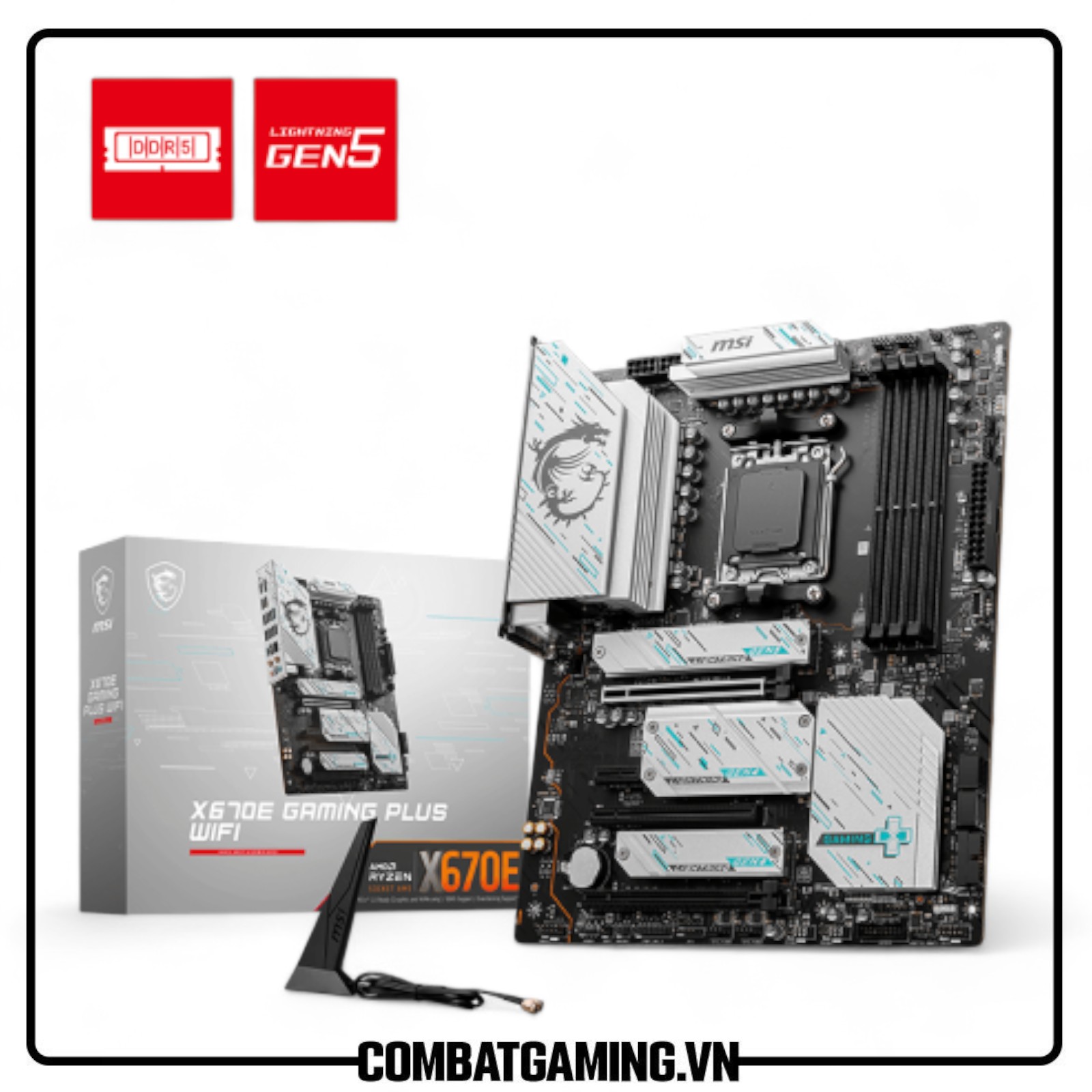

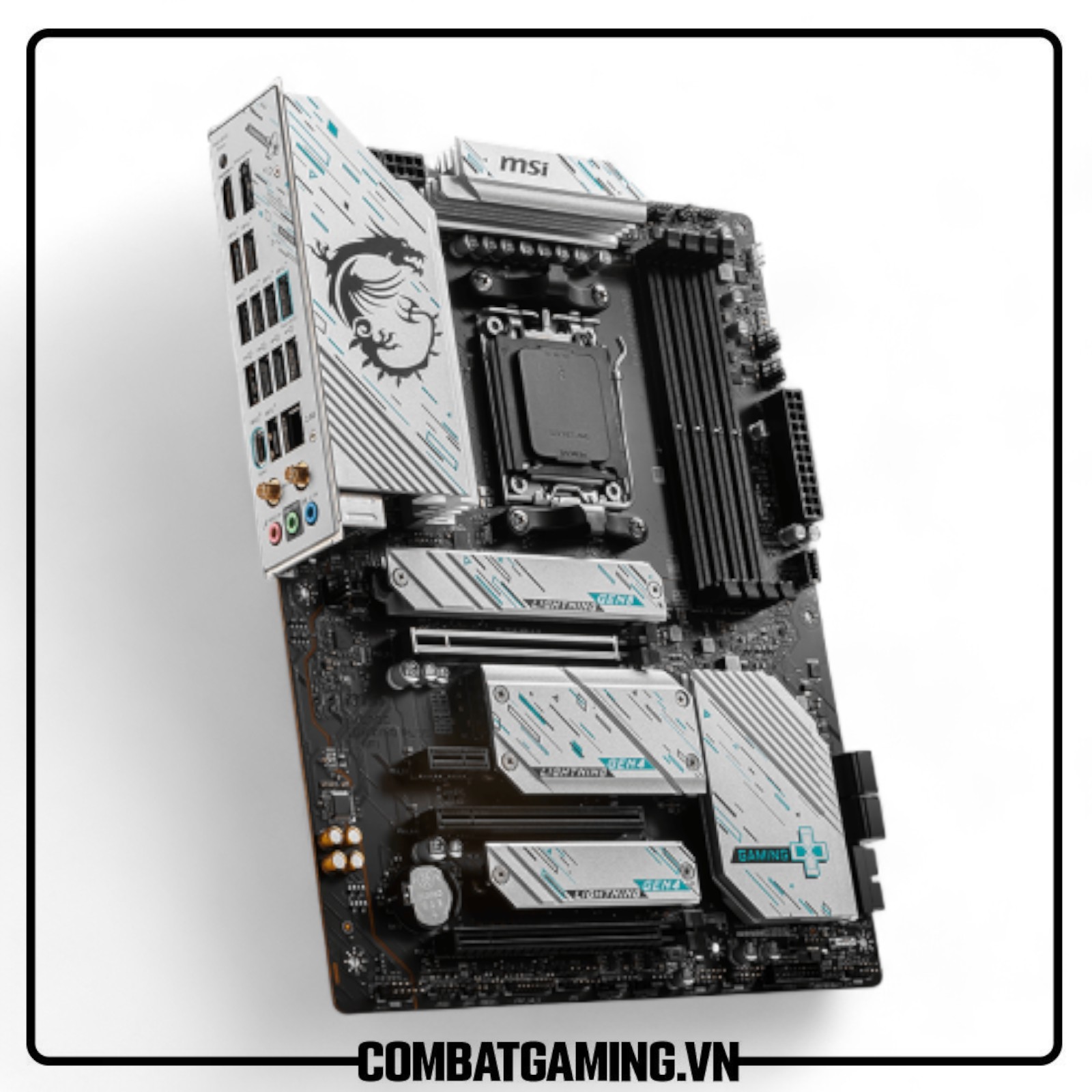

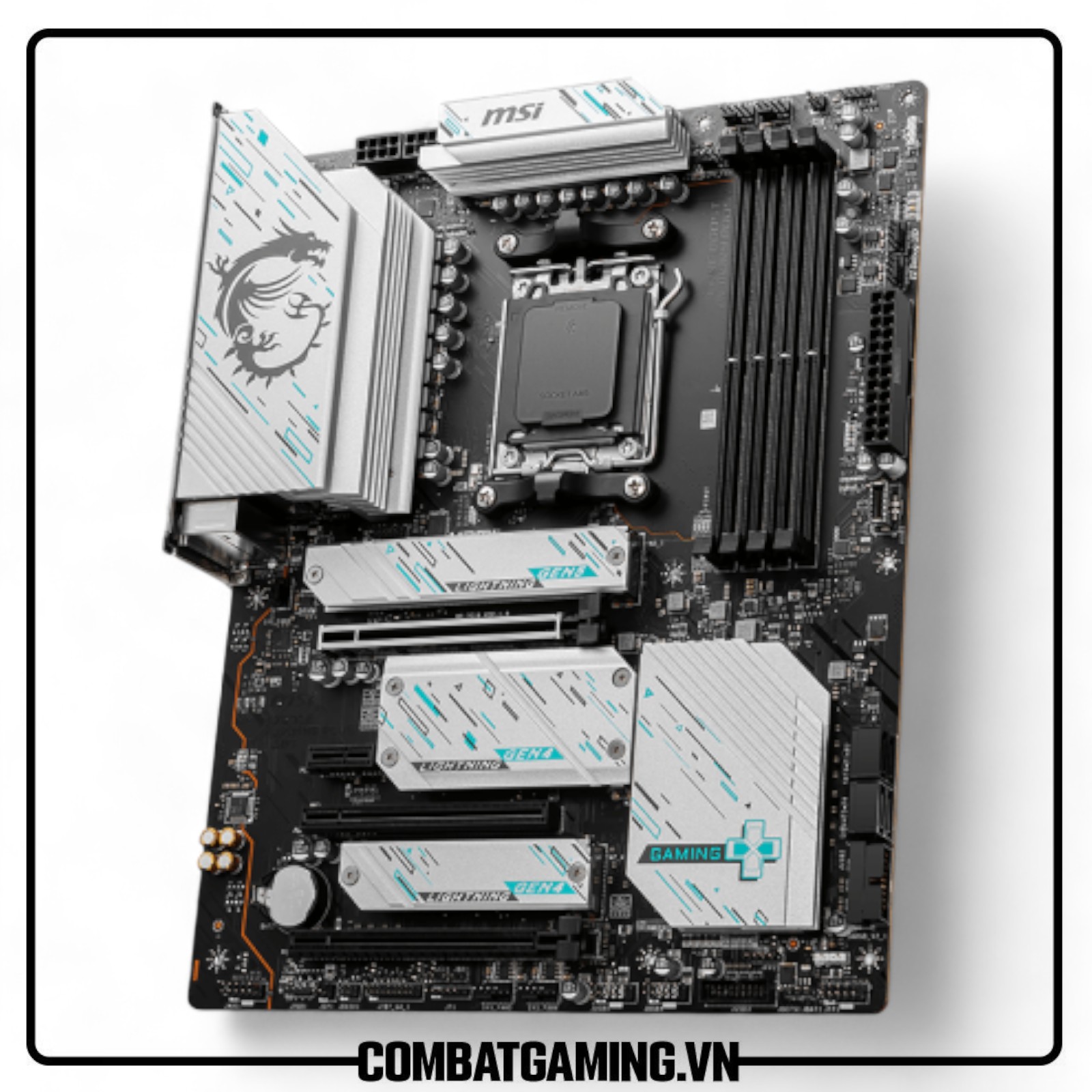

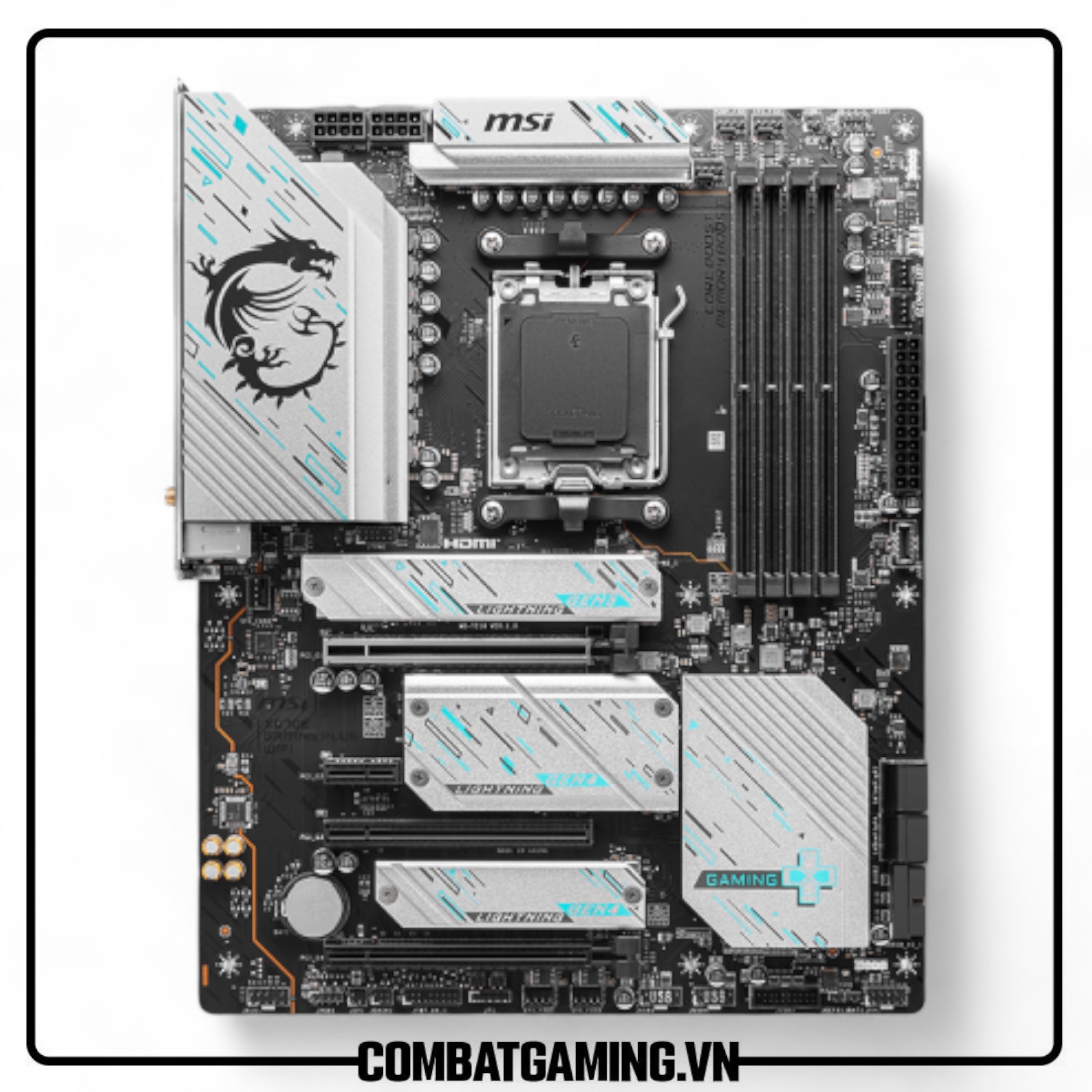

Mainboard MSI X670E GAMING PLUS WIFI

Mainboard MSI X670E GAMING PLUS WIFI - Socket AM5

7,990,000₫

- Socket: AM5 Hỗ trợ bộ xử lý máy tính để bàn dòng AMDRyzen™ 8000/7000

- Chipset: X670

- Kích thước: ATX

- Hỗ trợ bộ nhớ : DDR5 đến 7800+ (OC) MHz

- AUDIO BOOST 5: chất lượng âm thanh cấp phòng thu

- Bảo hành chính hãng 36 tháng

CHIPSET	AMD X670
CPU	Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5 UDIMM Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
LAN	Realtek® RTL8125BG 2.5Gbps LAN
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1 maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 maximum resolution of 4K 60Hz*
SLOT	3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID	Supports RAID 0 RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz 40MHz 80MHz 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3

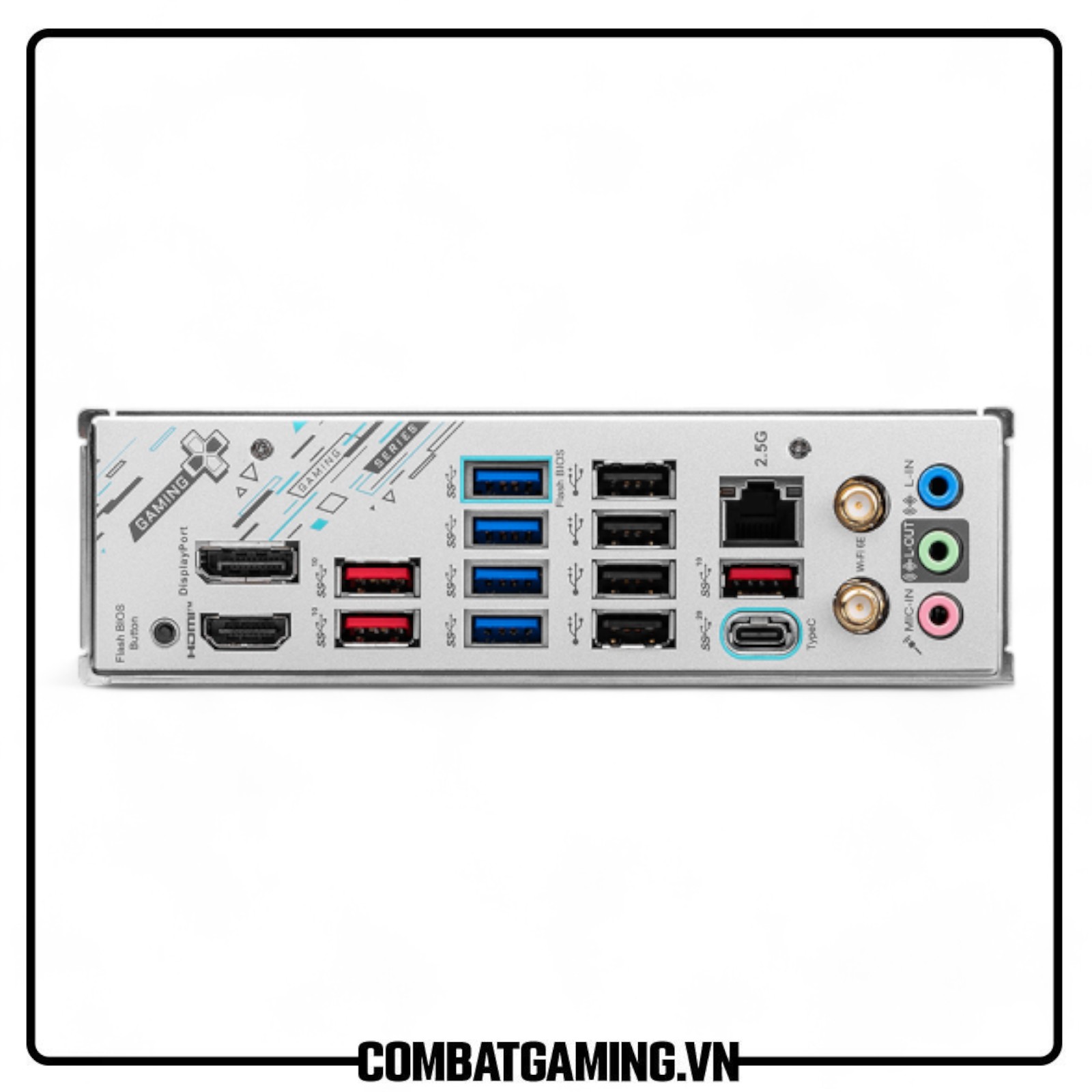

INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1 supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE	4x EZ Debug LED
PCB INFO	ATX 243.84mmx304.8mm
Bảo hành	36 tháng
