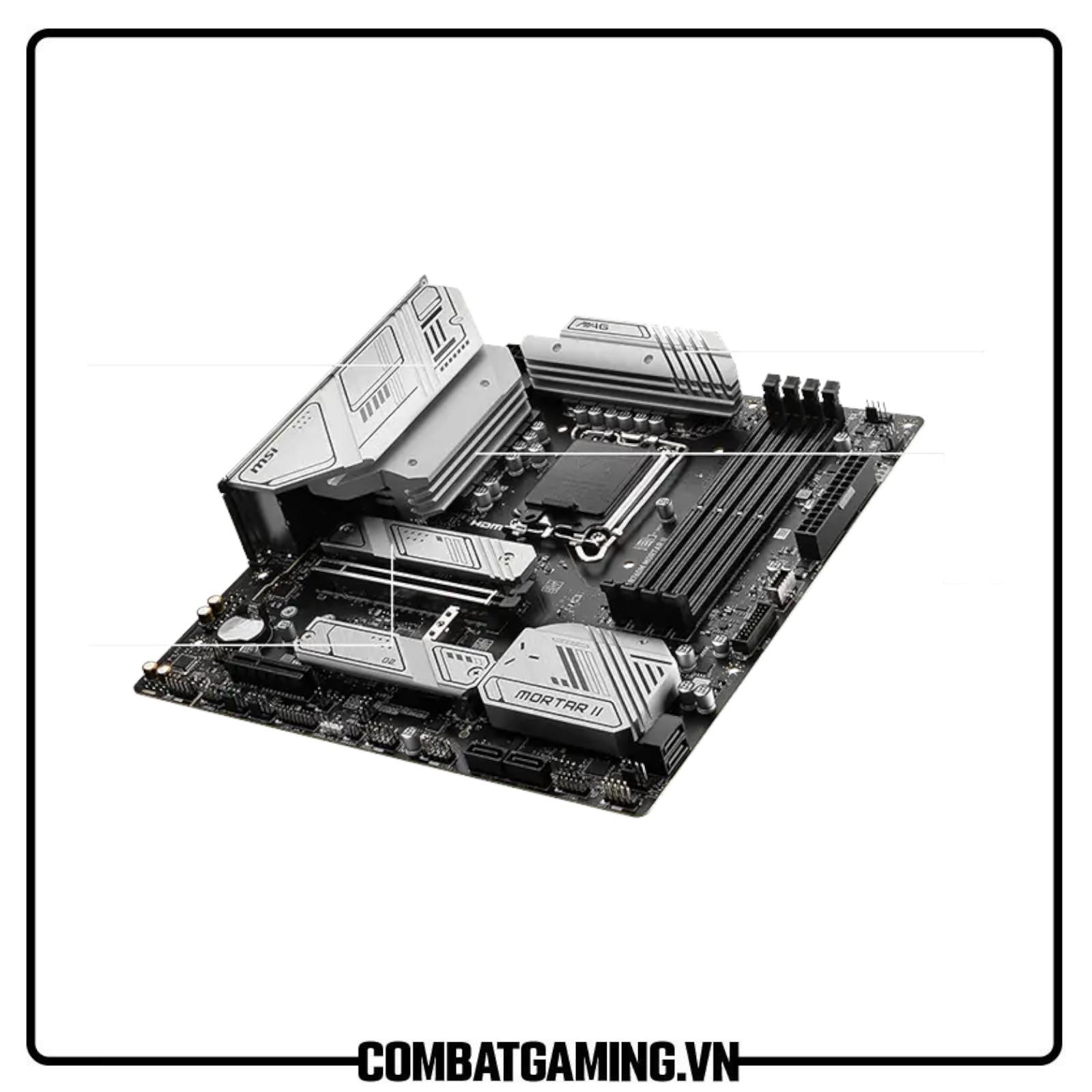

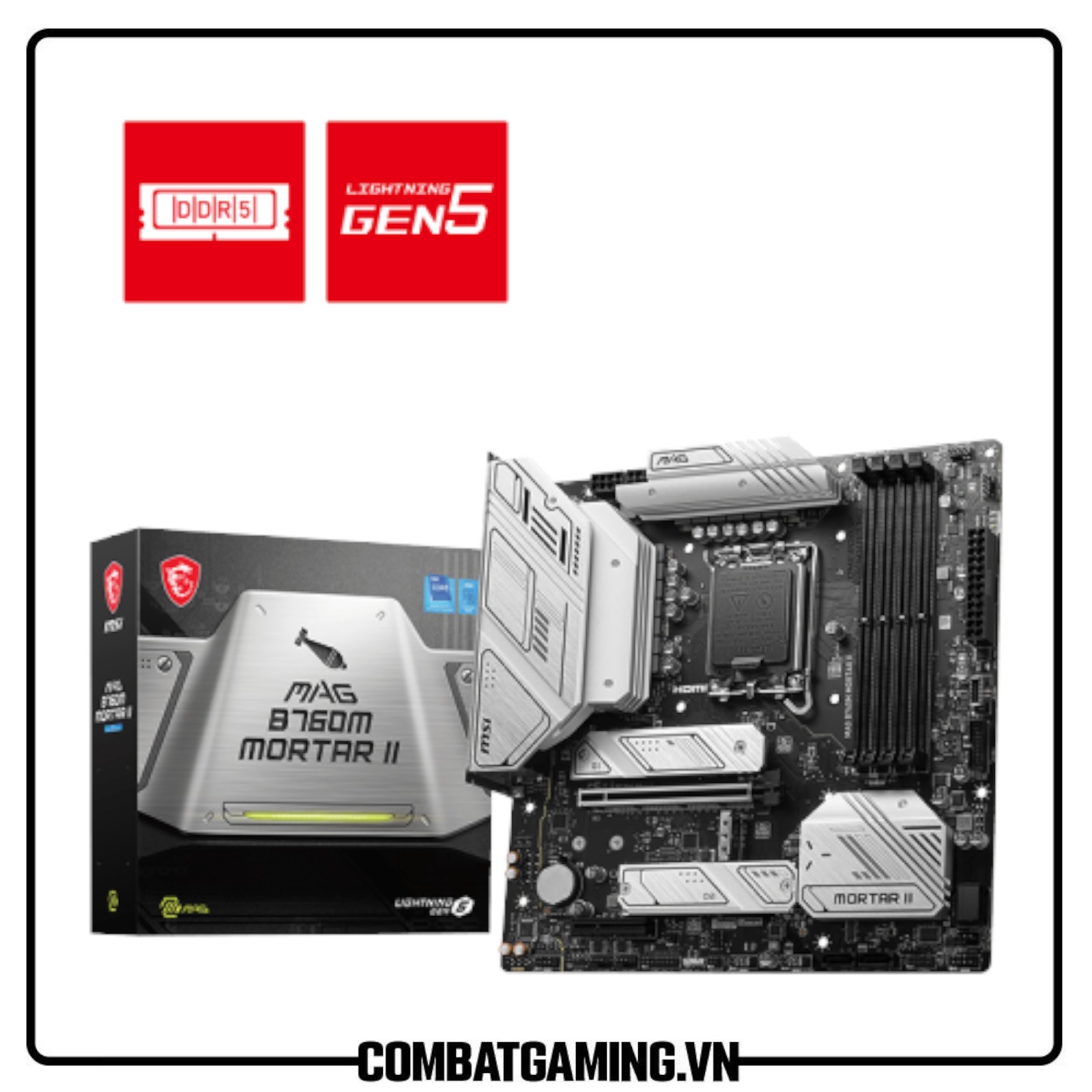

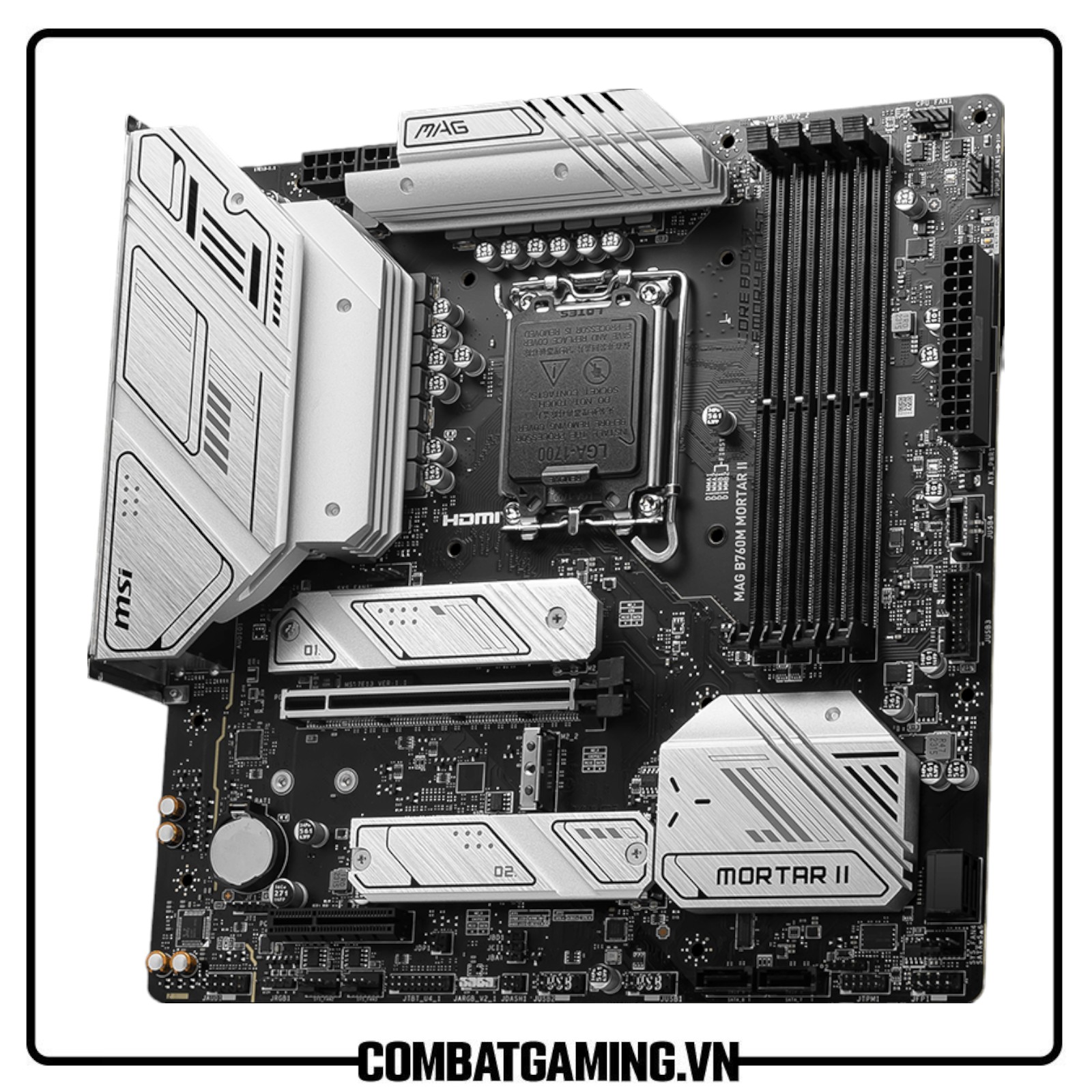

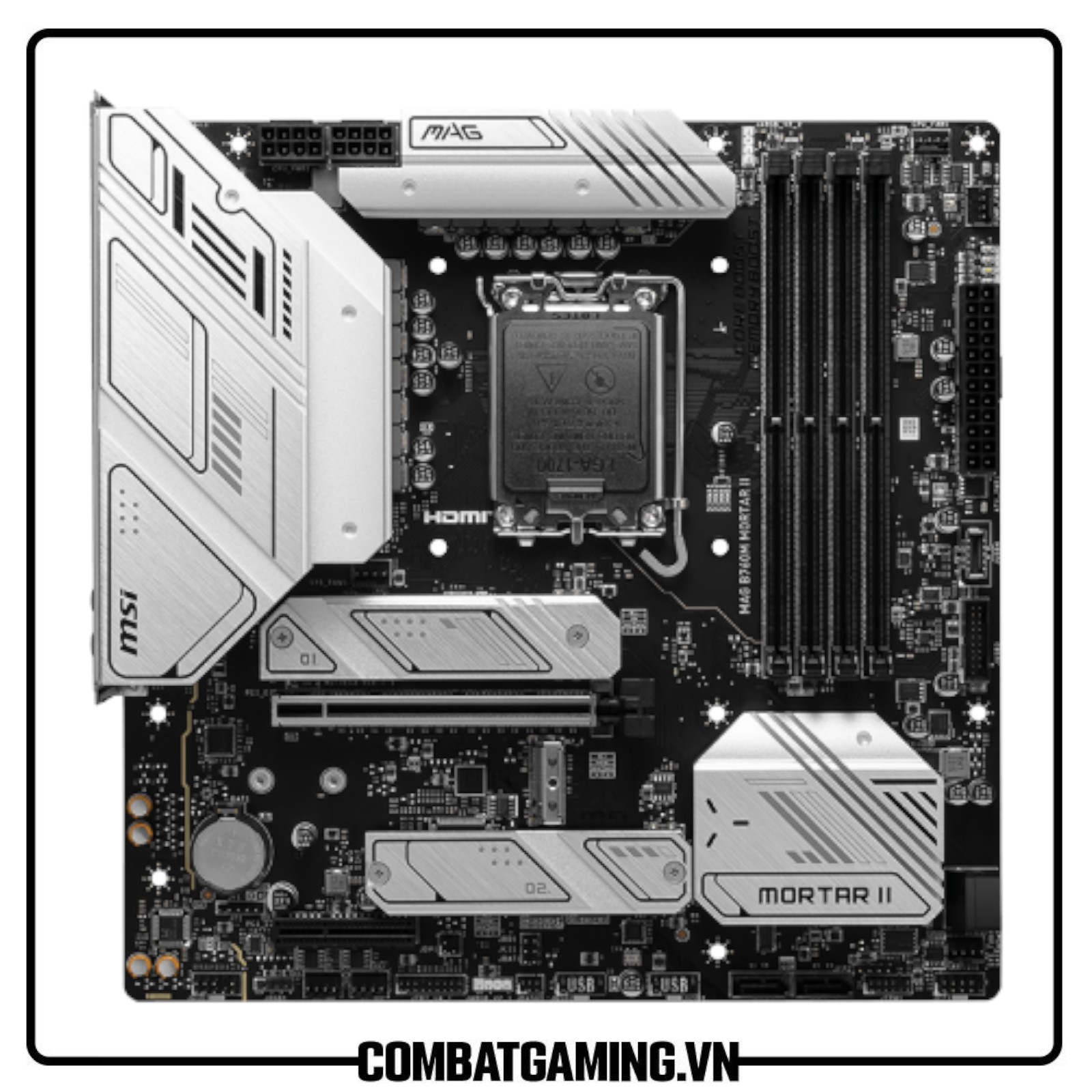

Mainboard MSI MAG B760M Mortar II

4,150,000₫

  • Hỗ trợ Bộ xử lý Intel ® Core™ thế hệ thứ 14/13/12, Bộ xử lý Intel ® Pentium ® Gold và Celeron ® cho ổ cắm LGA 1700
  • Hỗ trợ bộ nhớ DDR5, lên tới 7800+(OC) MHz
  • Thiết kế nguồn nâng cao: Hệ thống nguồn song song 12+1+1, đầu nối nguồn CPU 8 chân kép, Core Boost, Memory Boost
  • Trải nghiệm game nhanh như chớp: Khe cắm PCIe 5.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
  • Giải pháp tản nhiệt cao cấp: Thiết kế tản nhiệt mở rộng và M.2 Shield Frozr được thiết kế cho hệ thống hiệu suất cao và hoạt động không ngừng nghỉ
  • Audio Boost: Thưởng cho đôi tai của bạn với âm thanh đẳng cấp phòng thu
  • PCB chất lượng cao: PCB 6 lớp được làm bằng đồng dày 2oz và vật liệu cấp máy chủ



CHIPSETINTEL B760
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors
Intel® Pentium® Gold and Celeron® Processors LGA1700
MEMORY4x DDR5
Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC
un-buffered memory
Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS1x HDMI™
Support HDMITM 2.1 with HDR
maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4
maximum resolution of 4K 60Hz
SLOT1x PCI-E x16 slot
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
STORAGE3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4
supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4
supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode
supports 2280 devices
4x SATA 6G
RAIDSupports RAID 0
RAID 1
RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® 2.5Gbps LAN
AUDIORealtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
INTERNAL IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1
supports RTD3)
LED FEATURE4x EZ Debug LED

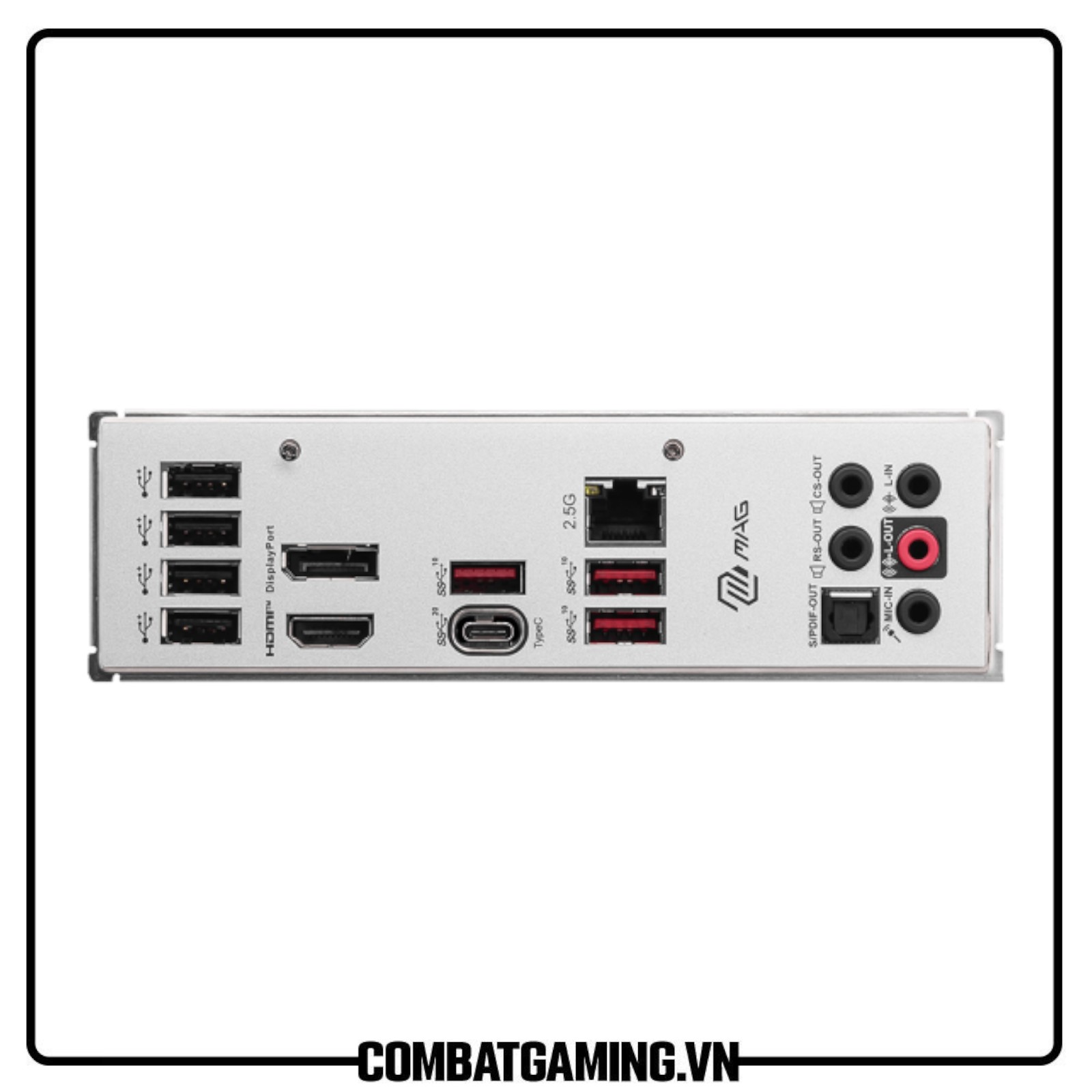

BACK PANEL PORTSDisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
HD Audio Connectors
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
PCB INFOmATX 243.84mmx243.84mm
Bảo hành36 tháng
