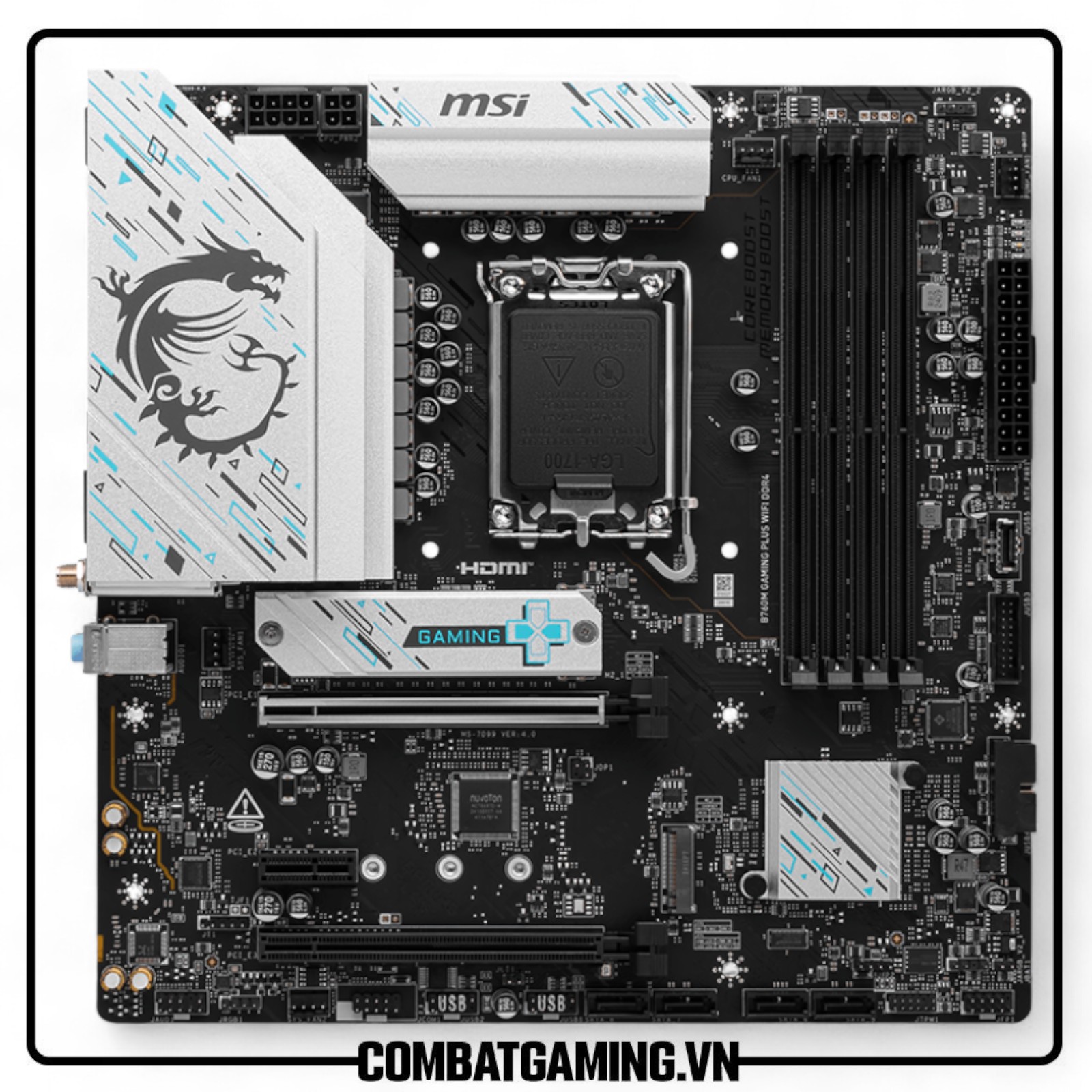

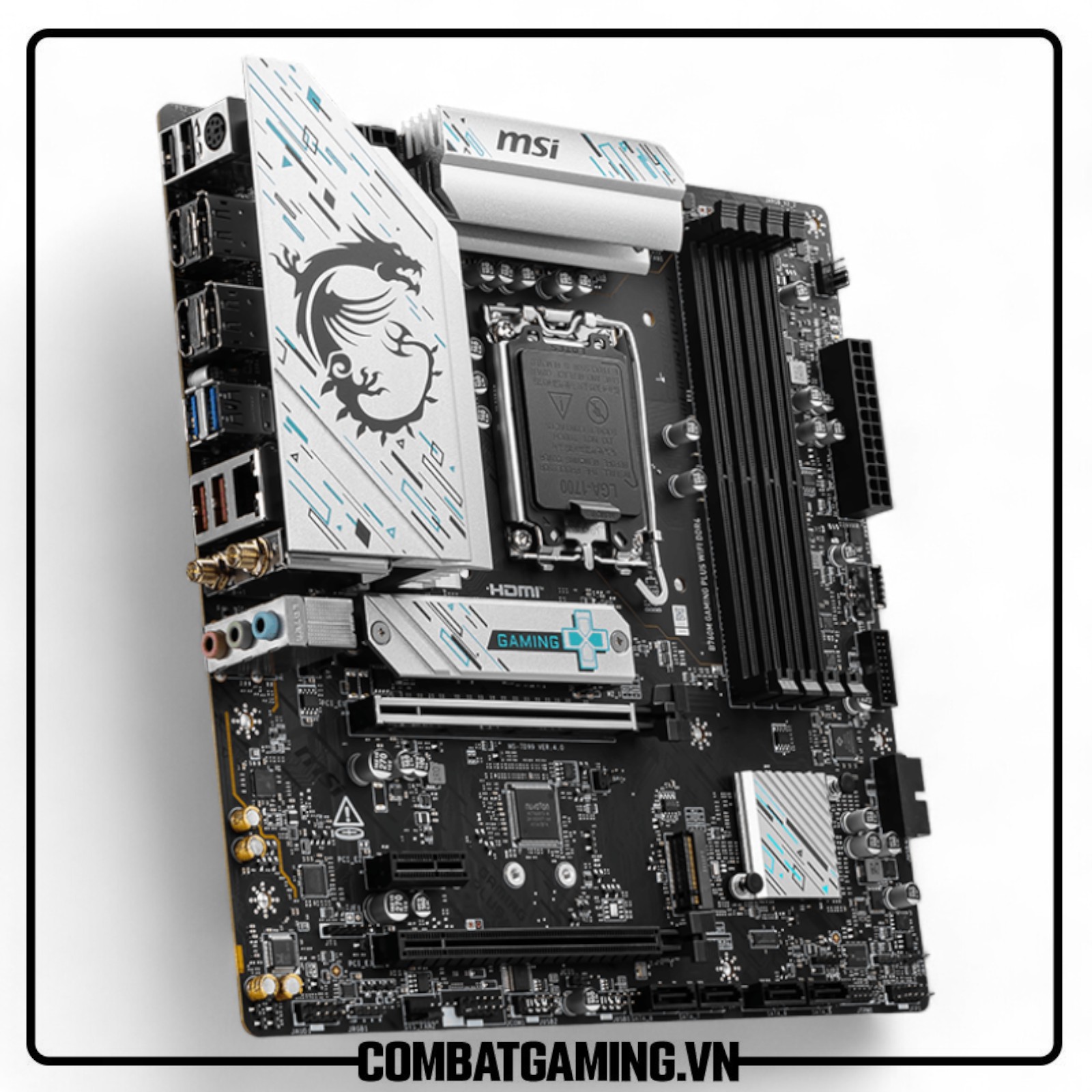

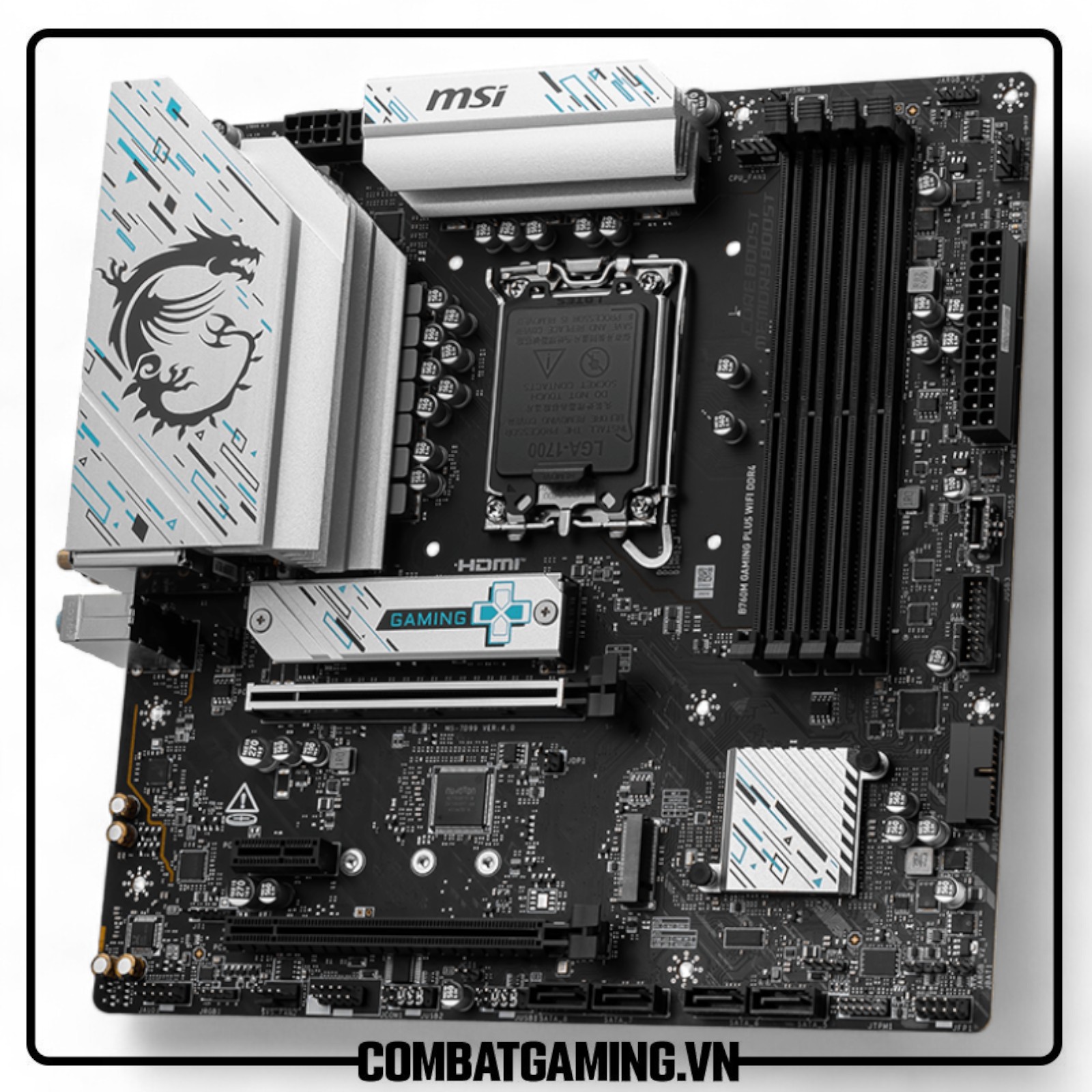

Mainboard MSI B760M Gaming Plus WIFI DDR4

The B760M GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.

STABILITY & DIY FRIENDLY

B760M Gaming Plus Wifi Stability and Diy Friendly

Core Boost Technology

12+1+1 Duet Rail Power System with P-PAK

Steel Armor

HIGH-SPEED TRANSMISSION

HDMI™ 2.1

2.5G Network Solution

Wi-Fi 6E

Memory Boost

Lightning Gen 4

ENHANCED COOLING MODULE

Extended Heatsink

M.2 Shield Frozr

Pump Fan Support

Heatsink with 7W/mK Thermal Pad

HARDWARE

Hardware

cooling
power solution
Diy Friendly
Protection

cooling overview

Fully Fan Control

Water Cooling

Cooling Overview

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr

Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Fully Fan Control

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

— TESTED TO WORK BEST WITH —

msi x670 system cooling none atx support branding icons

STRUCTURE

PCB DESIGN

12+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760M GAMING PLUS WIFI DDR4 is ready to sustain heavy daily work.

12PHASE

CORE POWERDRPS / P-PAK

1PHASE

AUX
POWER

1PHASE

GT
POWER

digital power desgin — DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

double power connection — DOUBLE POWER CONNECTORS

The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.

core boost — CORE BOOST

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

6 PCB layers
2oz Thickened Copper

EZ M.2 CLIP

DRIVER UTILITY INSTALLER

MORE FOR DIY FRIENDLY

EZ M.2 CLIP

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

MSI DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.

MORE FOR DIY FRIENDLY

WINDOWS 11 CERTIFIED — With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

Keep Out Zone — MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.

SOLID PIN DESIGN

STAINLESS STEEL IO

GROUNDING STRUCTURE

solid pin design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Advantages of Solid Pin Power connector

Improved stability : Larger contact area enhances stability during power delivery.
Low impedance : Solid pins offer low impedance, enabling efficient power flow.
Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
Suitable for high-current applications.

Anti-corrosive Stainless Steel IO Shield

Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.

* The image above is an illustrative reference. Please refer to specification pages for more details.

The Grounding Structure of Power Phases

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

Over Current Protection

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

MSI Rear and Front USB ports — Rear & Front USB ports

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

PERFORMANCE

Performance

Expansion
memory
Bios & software

LIGHTNING GEN 4 PCI-E

STORAGE

USB

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

Msi B760M Gaming plus wifi DDR4 Lighting Gen4

MSI STEEL ARMOR — REINFORCED,
HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

B760M GAMING PLUS WIFI DDR4 motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2x

64 Gbps

4x

6 Gbps

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

DDR4

XMP

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B760. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

MSI B760M Gaming plus wifi DDR4 MEMORY DDR4 WITH SMT SLOT

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

CLICK BIOS 5

MSI CENTER

AIDA64

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EZ-mode

Advanced mode

XMP

Choose from a preset XMP profile and automatically overclock compatible DDR memory.
VMD (Volume Management Device)

Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light — Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Opt-in to Cyber Safety with Norton 360 Deluxe

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

Up to 50 GB PC cloud backup
Real time Threat protection and Smart Firewall
Password manager
PC SafeCam

The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.

RESIZABLE BAR

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Connectivity

audio
mystic light
networking

Audio Boost

Isolated Analogy Structure

Audio boost

HIGH DEFINITION AUDIO PROCESSOR

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

MSI Isolated Analogy Structure for Audio Connectors

* The image above is an illustrative reference. Please refer to specification pages for more details.

Synchronize

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

A-RAINBOW V2

RGB

2.5G Lan & Wi-Fi 6E

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

MSI lan 2.5g wifi low-latency network with natenna

Wi-Fi 6E
Bluetooth 5.3
2.5G LAN

Bảo hành	36 tháng
