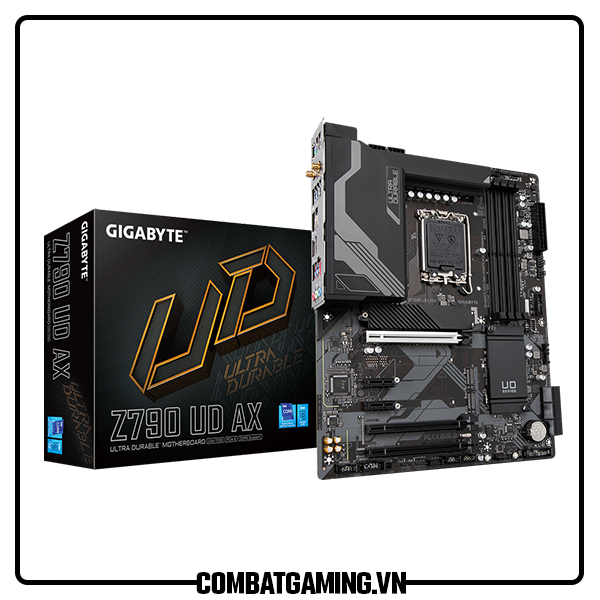

Mainboard Gigabyte Z790 UD AX DDR5

6,090,000₫7,090,000₫

-Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors
-Kích thước: ATX
-Khe cắm RAM: 4 khe (Tối đa 128GB)
-Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots, 1 x PCI Express 3.0 x16 slots, 2 x PCI Express 3.0 x1 slots
-Khe cắm ổ cứng: 3 x M.2 slots, 6 x SATA 6Gb/s ports
-Kết nối : Wifi & Bluetooth
-Bảo hành chính hãng 36 tháng

Main Gigabyte Z790 UD AX - Hiệu Suất Mạnh Mẽ Và Kết Nối Nhanh Chóng

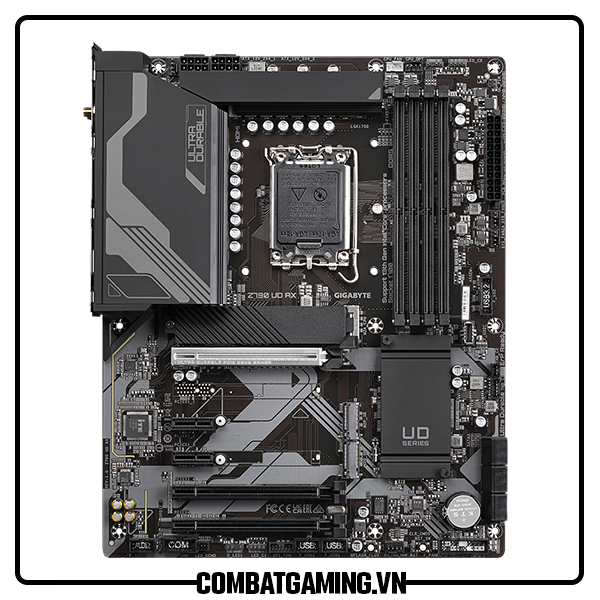

Mainboard Gigabyte Z790 UD AX Chinh Hang LGA 1700ATXDDR5 5

Pharse cấp nguồn kép Digital VRM Hiệu Suất Cao

Để đảm bảo hiệu suất Turbo Boost và ép xung tối đa của CPU thế hệ mới của Intel, bo mạch chủ dòng GIGABYTE Z790 UD trang bị thiết kế VRM tốt nhất từng được chế tạo với các thành phần chất lượng tốt nhất.

Mainboard Gigabyte Z790 UD Chinh Hang LGA 1700ATXDDR5 2



Gigabyte M.2 Thermal Guard

Với độ bền, GIGABYTE cung cấp giải pháp nhiệt cho các thiết bị SSD M.2, M.2 Thermal Guard ngăn chặn sự điều tiết và tắc nghẽn từ SSD M.2 tốc độ cao vì nó giúp tản nhiệt trước khi nó trở thành một vấn đề.

Mainboard Gigabyte Z790 UD Chinh Hang LGA 1700ATXDDR5 3



Chuẩn RamDDR5
Form FactorStandard ATX
Slot Ram4
SocketLGA 1700
WIFI
RAM Hỗ Trợ Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Ổ cứng hỗ trợ CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
Cổng kết nối 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header
with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & Bluethooth AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data
Bảo hành36 tháng
