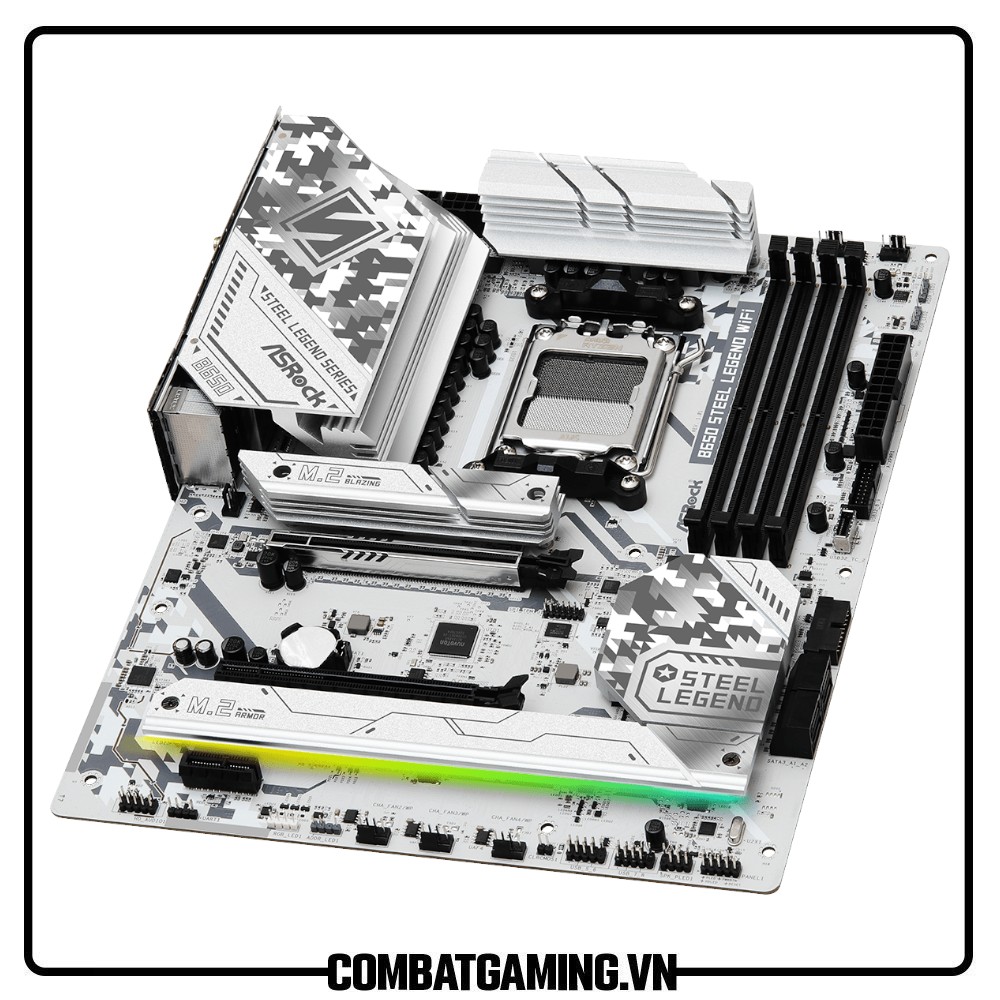

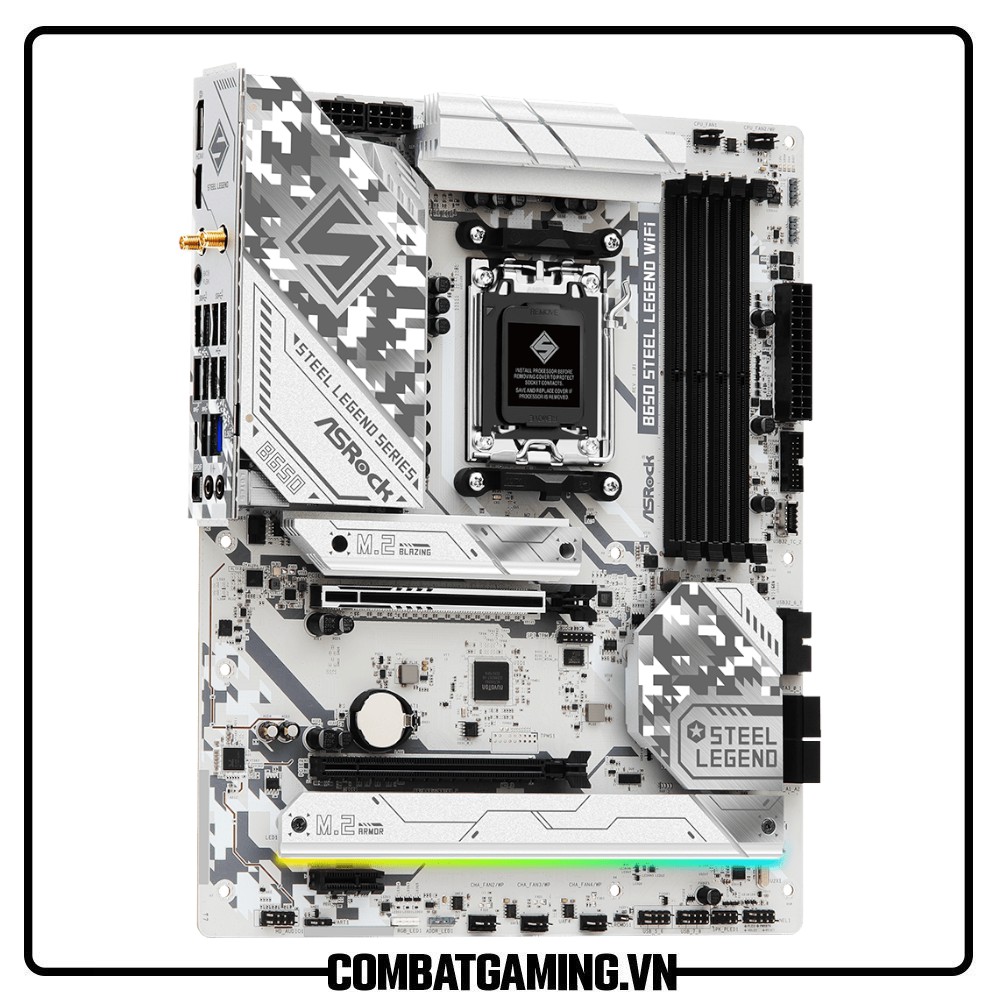

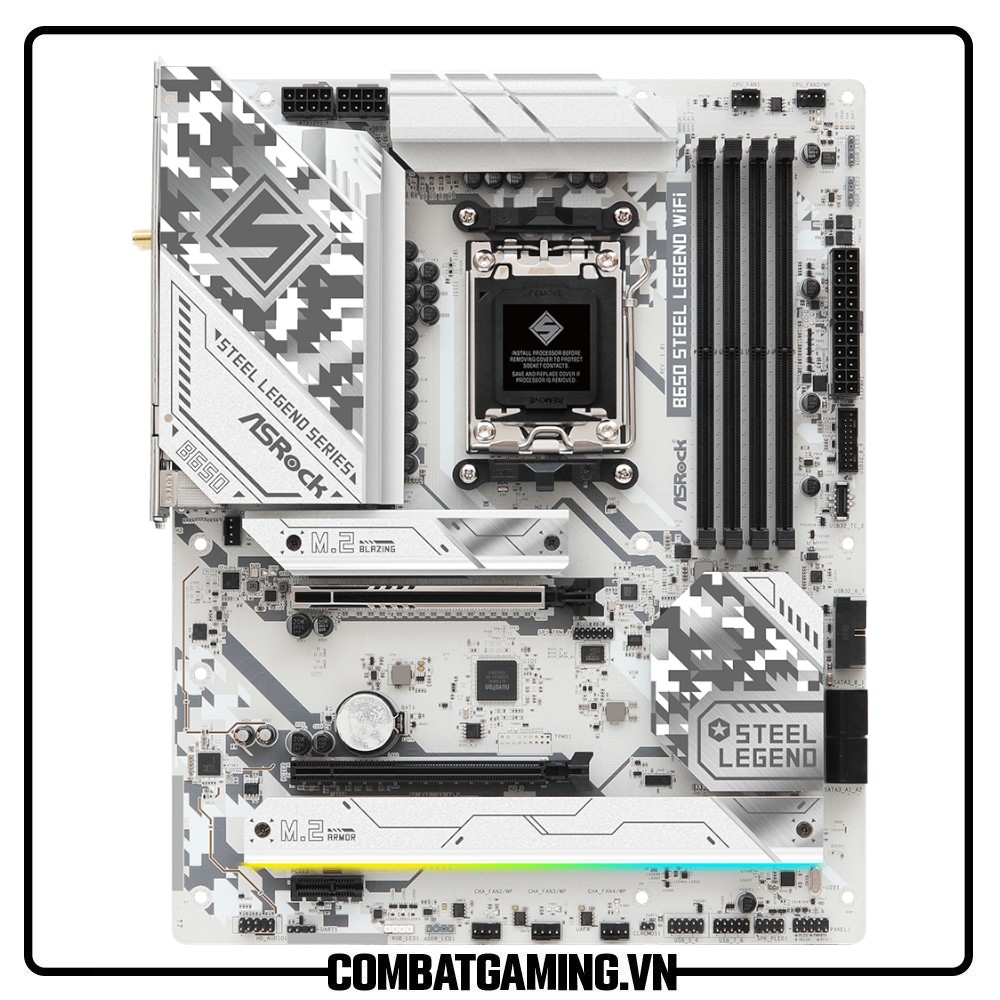

Mainboard ASRock B650 STEEL LEGEND WIFI DDR5

Liên Hệ

-Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

-14+2+1 Power Phase, 80A Dr.MOS for Vcore

-4 x DDR5 DIMMs
 Supports Dual Channel, up to 7200+ (OC)

-1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1

-Graphics Output Options: 1 HDMI, 1 DisplayPort

-Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio

-4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)

 1 USB 3.2 Gen2x2 Type-C (Rear)
 1 USB 3.2 Gen1 Type-C (Front)
 1 USB 3.2 Gen2 Type-A (Rear)
 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
 8 USB 2.0 (4 Rear, 4 Front)

-Dragon 2.5G LAN

-802.11axe WiFi 6E + Bluetooth

-Supports ASRock Auto Driver Installer, BIOS Flashback
-Bảo hành: 36 tháng.

CPU:- Supports AMD Socket AM5 Ryzen™ 9000
8000 and 7000 Series Processors*
CHIPSET:- AMD B650
Memory:- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC
un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 192GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS:- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics:Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible
supports HDR
HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed)
supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio:- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Impedance Sensing on Rear Out port - Nahimic Audio
LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game
Browser
and Streaming Modes - User Customized Priority Control
Wireless LAN:- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO
SLOT:CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1)
supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2)
supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE3)* - 1 x Vertical M.2 Socket (Key E)
supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage:CPU: - 1 x Blazing M.2 Socket (M2_1
Key M)
supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3
Key M)
supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2
Key M)
supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors** ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors
RAID:- Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0
RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB:CPU: - 1 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34)
4 Front) - 8 x USB 2.0 (4 Rear
4 Front)
Connector:- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header

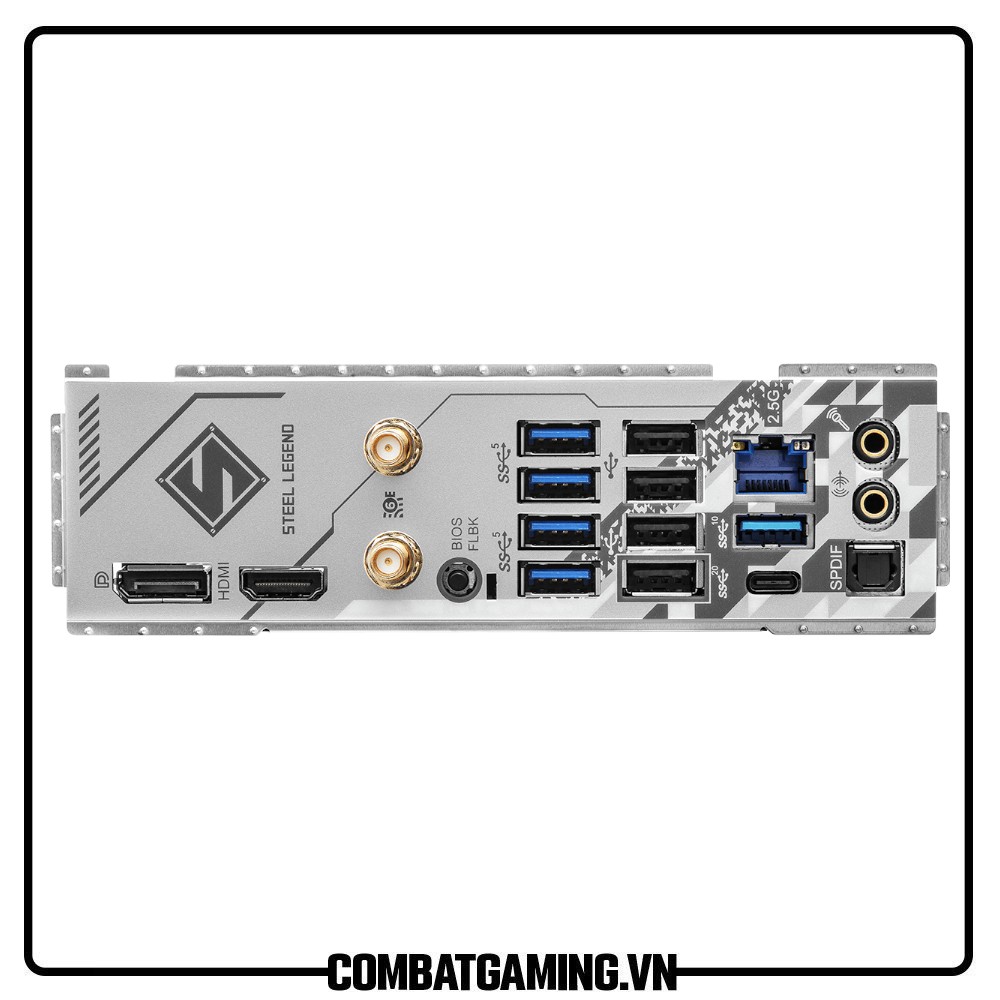

Rear Panel I/O:- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

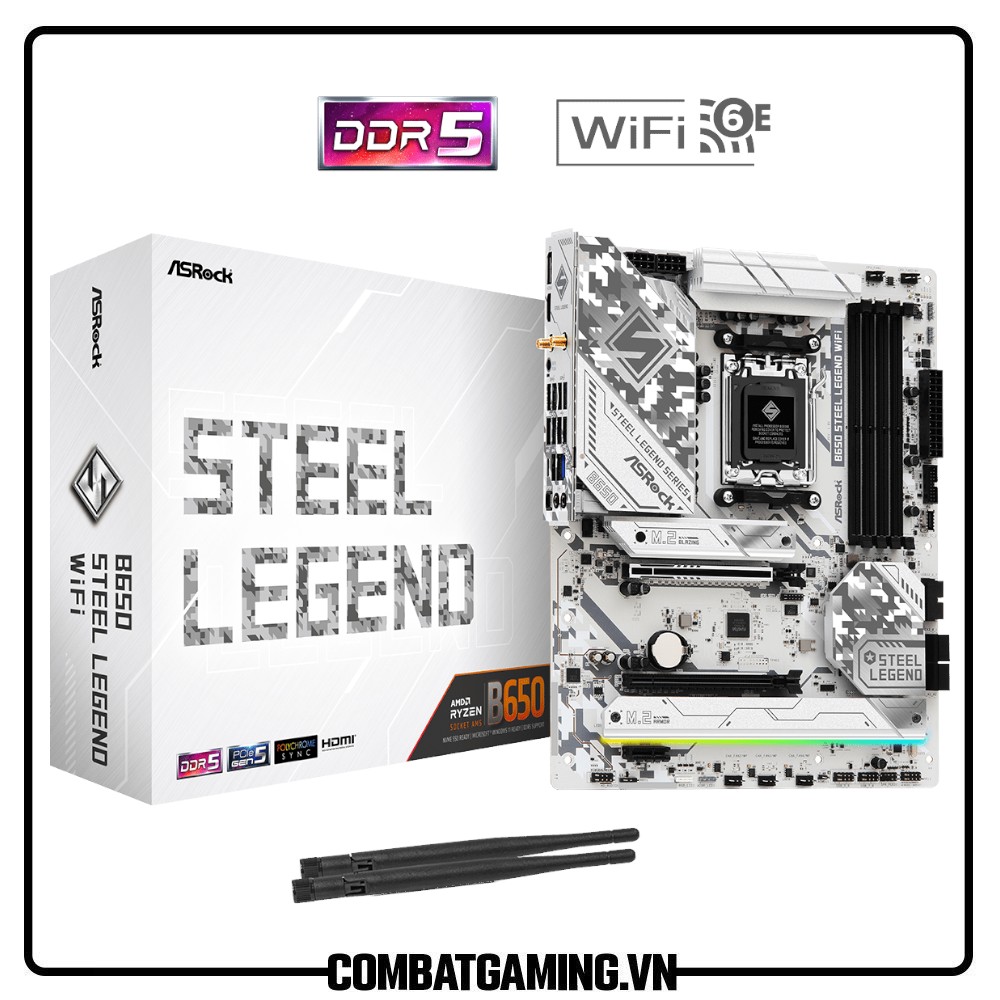

Accessories:- 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
Form Factor:- ATX Form Factor: 12.0-in x 9.6-in
30.5 cm x 24.4 cm - 8 Layer PCB
OS:- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications:- FCC
CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Bảo hành36 tháng
