- Name

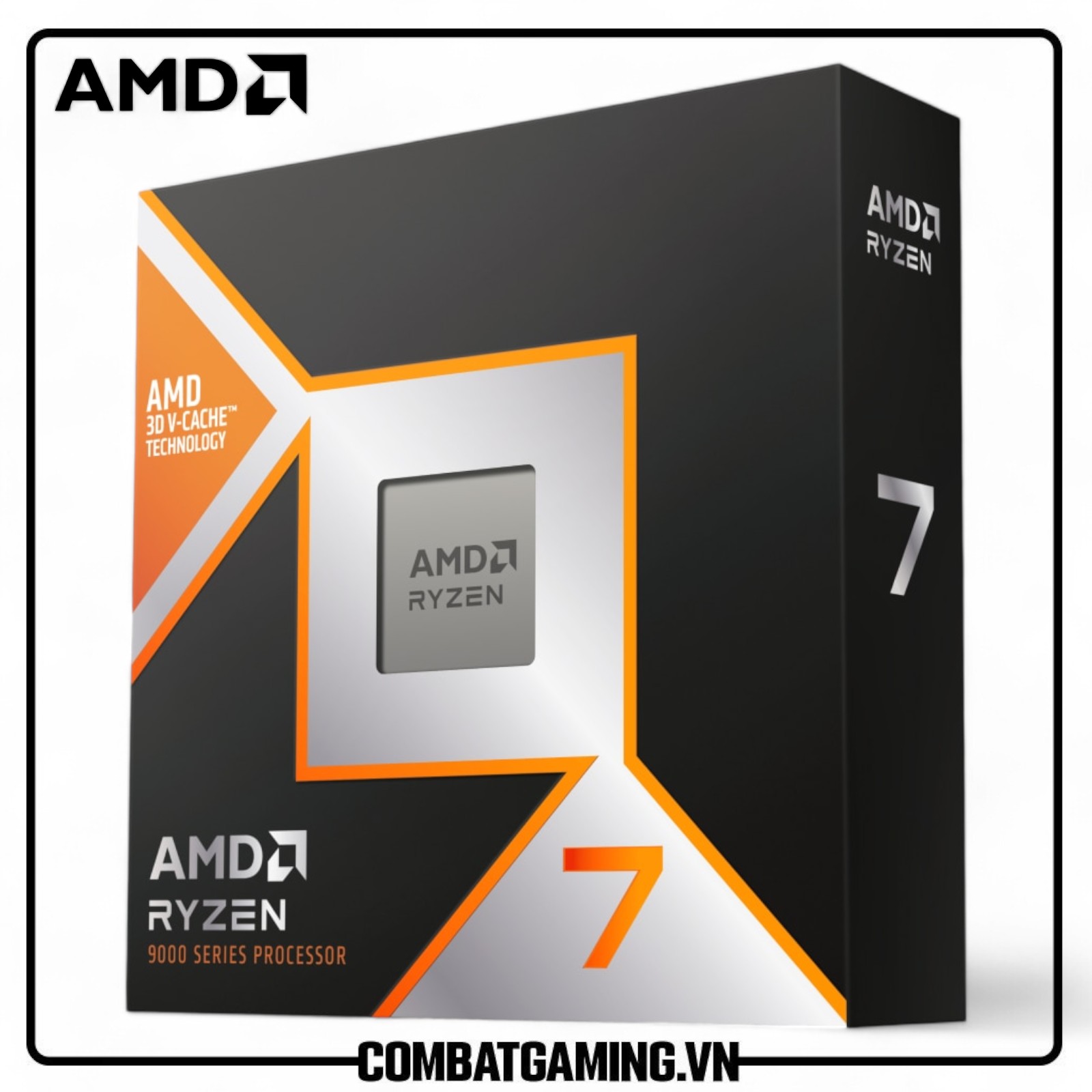

- AMD Ryzen™ 7 9800X3D
- Family
- Ryzen
- Series
- Ryzen 9000 Series
- Form Factor
- Desktops , Boxed Processor
- Market Segment
- Enthusiast Desktop
- AMD PRO Technologies
- No
- Consumer Use
- Yes
- Regional Availability
- Global
- Former Codename
- Granite Ridge AM5
- Architecture
- Zen 5
- # of CPU Cores
- 8
- Multithreading (SMT)
- Yes
- # of Threads
- 16
- Max. Boost Clock
- Up to 5.2 GHz
- Base Clock
- 4.7 GHz
- L1 Cache
- 640 KB
- L2 Cache
- 8 MB
- L3 Cache
- 96 MB
- Default TDP
- 120W
- Processor Technology for CPU Cores
- TSMC 4nm FinFET
- Processor Technology for I/O Die
- TSMC 6nm FinFET
- Package Die Count
- 2
- Unlocked for Overclocking
- Yes
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- CPU Socket
- AM5
- Supporting Chipsets
- A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Thermal Solution (PIB)
- Not Included
- Recommended Cooler
- Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax)
- 95°C
- Launch Date
- 11/07/2024
- *OS Support
- Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
