THÔNG SỐ KỸ THUẬT

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

MSI

Model

Creator TRX40

CPU hỗ trợ

3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

Chipset

AMD® TRX40 Chipset

RAM hỗ trợ

  • 8 x DDR4 memory slots, support up to 256GB
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
  • Quad channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory

Khe cắm mở rộng

  • 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

Multi-GPU

  • Supports 3-Way NVIDIA® SLI Technology
  • Supports 3-Way AMDA® CrossFire Technology

Lưu Trữ

  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (M2_3, Key M)
    • Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
  • 2x M.2 slots (M2_1 & M2_2, Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

Supports RAID 0, RAID 1 and RAID 10

USB

AMD® TRX40 Chipset

  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors

3rd Gen AMD Ryzen Threadripper Desktop Processor

  • 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

ASMedia® ASM3242 Chipset

  • 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Âm Thanh

  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports front & rear panel Mic-in
    • Supports S/PDIF output

LAN / Wireless / Bluetooth

  • 1x Intel® I211AT Gigabit LAN controller
  • 1x Aquantia® AQC107 10-Gigabit LAN controller
  • The Wireless module is pre-install in the M2_4 (Key-E) slot

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5

Cổng kết nối ( I/O bên trong)

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin pump fan connector (supports up to 2A)
  • 4x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x LED demo connector
  • 1x JBLK_U pin header
  • 1x JBLK_D pin header
  • 1x OC retry pin header
  • 1x OC force enter pin header
  • 1x Slow mode booting jumper

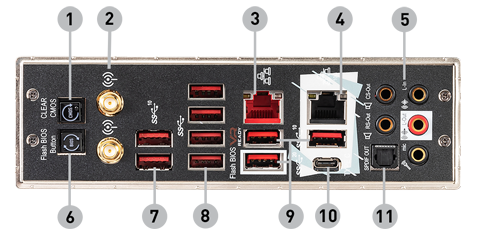

Cổng kết nối ( I/O Phía sau)

  1. Clear CMOS Button
  2. Wireless / Bluetooth
  3. Gigabit LAN
  4. 10G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen2 Type-A
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen2 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. USB 3.2 Gen1 Type-A

Kích cỡ

  • E-ATX Form Factor
  • 12 in. x 10.9 in. (30.4 cm x 27.7 cm)
